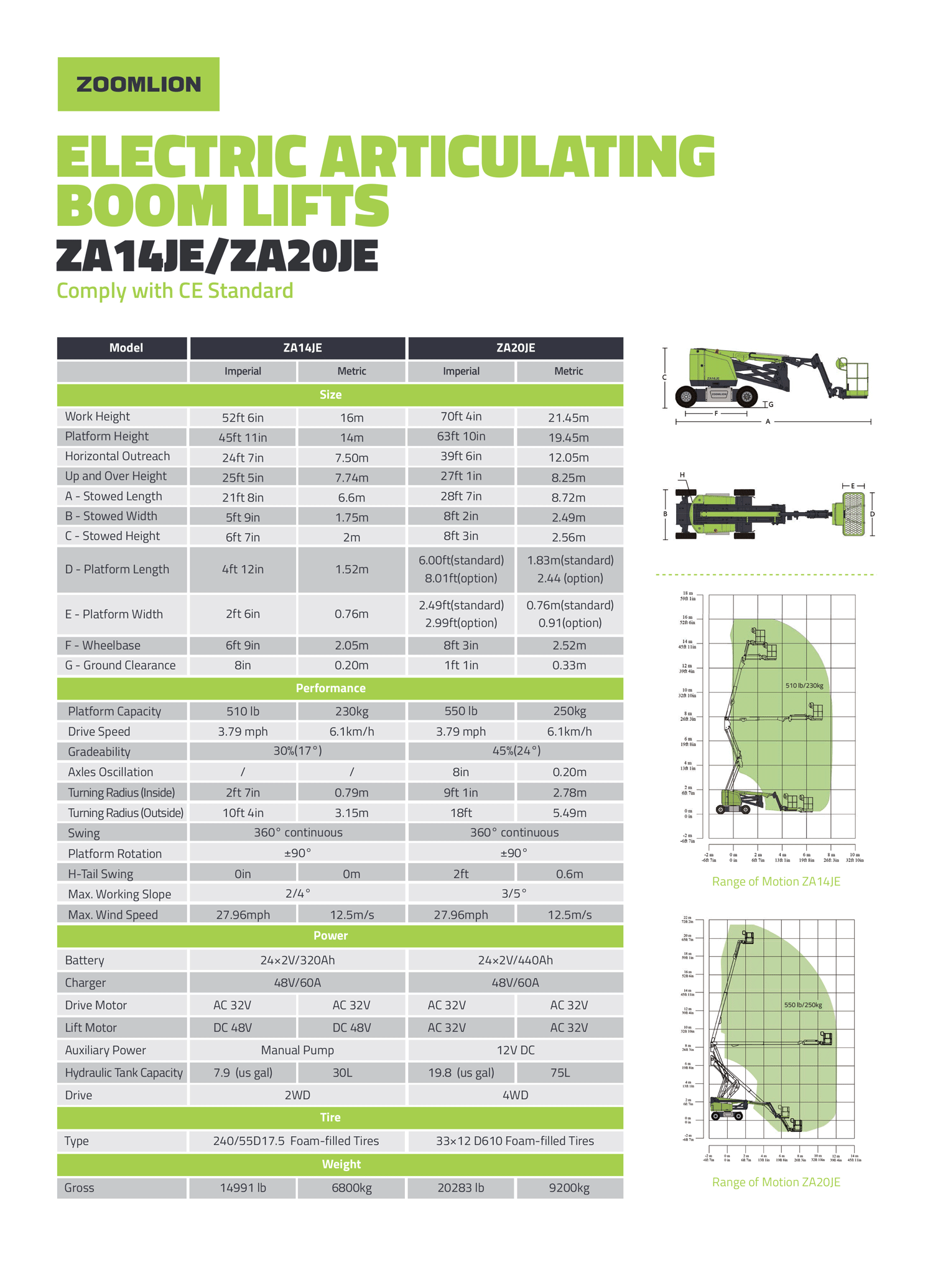

ZA14JE/ZA20JE is an electric articulating boom lift. It adopts a center layout and has great structural rigidity. Excellent energy management system gives longer running time and improves battery life. The accurate and efficient AC drive system provides strong power and smooth control. Advanced dual control system (valve control + pump control) offers an energy-saving and efficient operation. With low noise, zero emissions and easy maintenance, this boom lift is ideal for indoor applications.

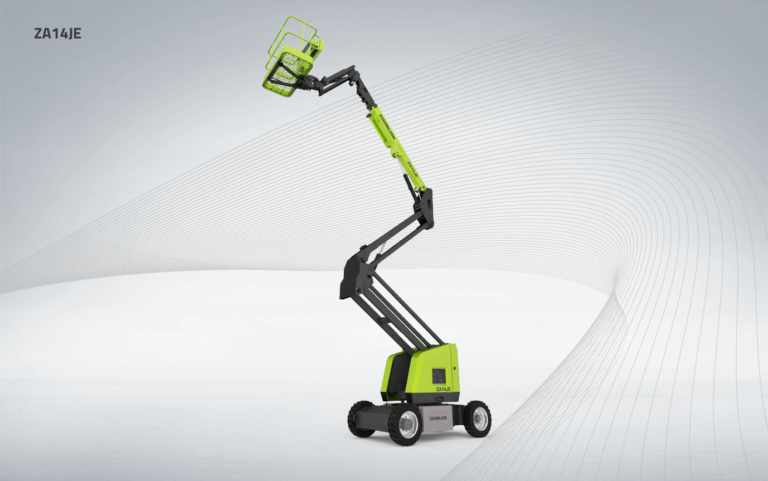

ZA14JE
Platform Capacity - 230kg
Battery - 24×2V/320Ah | Charger - 48V/60A | Drive Motor - AC 32V | Lift Motor - DC 48V
Work Height - 16mm
Horizontal Outreach - 7.50m
Highlights
Features
Highlights
Features
Standard Features
Proportional control
All motion alarm
Flashing amber beacon
Self-closing entry gate
Emergency descent system
Emergency stop button
Auto-leveling system
On-board diagnostic system
Over tilt protection system
Oscillating axle
Load sensing system
4.3′ LED display
Horn
Accessories ＆ Options
AC power to platform
Air line to platform
2.44×0.91m work platform
Non-marking tire
Platform work lights
Accessories ＆ Options
ZA18JE
Platform Capacity - 250kg
Battery - 24×2V/440Ah | Charger- 48V/60A | Drive Motor - AC 32V | Lift Motor - AC 32V
Work Height - 21.45m
Horizontal Outreach - 12.05m
Highlights
Features
Highlights
Features
Standard Features
Proportional control
All motion alarm
Flashing amber beacon
Self-closing entry gate
Emergency descent system
Emergency stop button
Auto-leveling system
On-board diagnostic system
Over tilt protection system
Load sensing system
4.3′ LED display
Horn
Accessories ＆ Options
AC power to platform
Airline to platform
Non-marking tire
Accessories ＆ Options
Highlights
Features
Full Specification
Highlights
| Provide a work height of 21.50 m and lift capacity of 250 kg | ||
| Fast lift system directly lowers the boom from the highest position to the ground without folding the boom | ||
| Accurate and efficient traveling AC drive system and on-board motion AC drive system provide strong power, stable control and maintenance-free motor. | ||
| Independent auxiliary power system for more secure applications |
Features
| Standard Features | Accessories ＆ Options | |
| Proportional control | AC power to platform | |
| All motion alarm | Air line to platform | |
| Flashing amber beacon | 2.44×0.91m work platform | |
| Self-closing entry gate | Non-marking tire | |
| Emergency descent system | Platform work lights | |
| Emergency stop button | ||
| Auto-leveling system | ||
| On-board diagnostic system | ||
| Over tilt protection system | ||
| Oscillating axle | ||
| Load sensing system | ||
| 4.3′ LED display | ||
| Horn | ||
Full Specification
| Comply with CE/ANSI/GB Standard | ||
| Model | ZA20JE | |
| Size | ||
| Work Height | 21.45m | |
| Platform Height | 19.45m | |
| Horizontal Outreach | 12.05m | |
| Up and Over Height | 8.25m | |
| A – Stowed Length | 8.72m | |
| B – Stowed Width | 2.49m | |
| C – Stowed Height | 2.56m | |
| D – Platform Length | 1.83m | |
| E – Platform Width | 0.76m | |
| F – Wheelbase | 2.52m | |
| G – Ground Clearance | 330mm | |
| Performance | ||
| Platform Capacity | 250kg | |
| Drive Speed | 6.1km/h | |
| Gradeability | 45% | |
| Axles Oscillation | 200mm | |
| Turning Radius (Inside) | 2.78m | |
| Turning Radius (Outside) | 5.49m | |
| Swing | 360° continuous | |
| Platform Rotation | ±90° | |
| H-Tail Swing | 0.6m | |
| Max. Working Slope | 3/5° | |
| Max. Wind Speed | 12.5m/s | |
| Power | ||
| Battery | 24×2V/440Ah | |
| Charger | 48V/60A | |
| Drive Motor | AC 32V | |
| Lift Motor | AC 32V | |
| Auxiliary Power | 12V DC | |
| Hydraulic Tank Capacity | 75L | |
| Tire | ||
| Type | 33×12 D610 Foam-filled Tires | |
| Weight | ||
| Gross | 9200kg | |
Highlights
Features
Full Specification
Highlights
| Center layout, great structural rigidity, and small boom deflection | |
| Advanced dual control system (valve control + pump control) offers a energy-saving and smooth control | |
Accurate and efficient traveling AC drive system provides strong power and stable control |
Features
| Standard Features | Accessories ＆ Options | ||
| Proportional control | AC power to platform | ||
| All motion alarm | Airline to platform | ||
| Flashing amber beacon | Non-marking tire | ||
| Self-closing entry gate | |||
| Emergency descent system | |||
| Emergency stop button | |||
| Auto-leveling system | |||
| On-board diagnostic system | |||
| Over tilt protection system | |||
| Load sensing system | |||
| 4.3′ LED display | |||
| Horn | |||
Full Specification
| Comply with CE/ANSI/GB Standard | |
| Model | ZA14JE |
| Size | |
| Work Height | 16m |
| Platform Height | 14m |
| Horizontal Outreach | 7.50m |
| Up and Over Height | 7.74m |
| A – Stowed Length | 6.6m |
| B – Stowed Width | 1.75m |
| C – Stowed Height | 2m |
| D – Platform Length | 1.52m |
| E – Platform Width | 0.76m |
| F – Wheelbase | 2.05m |
| G – Ground Clearance | 200mm |
| Performance | |
| Platform Capacity | 230kg |
| Drive Speed | 6.1km/h |
| Gradeability | 30%(17°) |
| Axles Oscillation | |
| Turning Radius (Inside) | 0.79m |
| Turning Radius (Outside) | 3.15m |
| Swing | 360° continuous |
| Platform Rotation | ±90° |
| H-Tail Swing | 0m |
| Max. Working Slope | 2/4° |
| Max. Wind Speed | 12.5m/s |
| Power | |
| Battery | 24×2V/320Ah |
| Charger | 48V/60A |
| Drive Motor | AC 32V |
| Lift Motor | DC 48V |
| Auxiliary Power | Manual Pump |
| Hydraulic Tank Capacity | 30L |
| Tire | |
| Type | 240/55D17.5 Foam-filled Tires |
| Weight | |
| Gross | 6800kg |
DIESEL MODELS

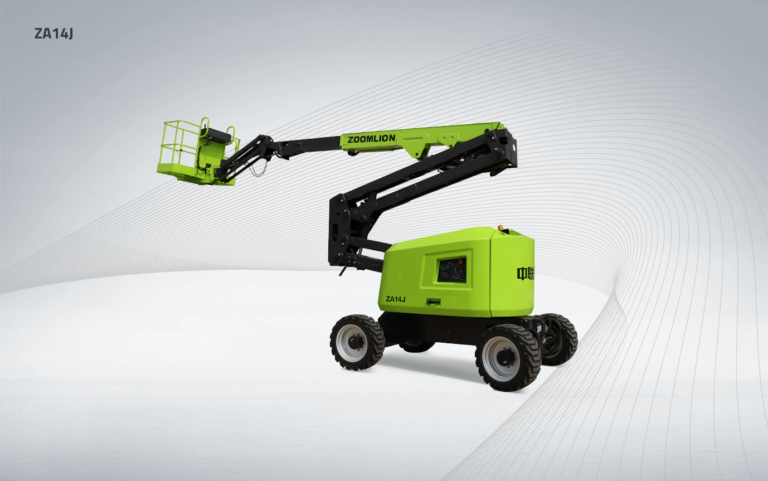

ZA14J
Platform Capacity - 300kg
Diesel Engine - Kubota V2403
Work Height - 15.80m
Horizontal Outreach - 8.30m
ZA14J features large capacity, high reliability, accurate control and great performance. It has the strength to handle loads up to 300 kg. Our hydraulic system with multi-way valve for precise flow distribution and high weighing precision of ≤±5kg guarantee efficient performance. Strong and energy-saving power system with professional off-road chassis let you handle complex road conditions. On-board diagnosis, lubrication-free design, and swing-out engine tray make maintenance more convenient and reduce the total cost.
ZA18J
Platform Capacity - 250kg
Diesel Engine - Kubota V2403
Work Height - 20.93m
Horizontal Outreach - 12.35m
ZA18J features high work height of 20.93m , large lift capacity, high reliability, accurate control and great performance. Offer a lift capacity of 250 kg, ideal for heavy load condition. Provide a hydraulic system with multi-way valve for precise flow distribution, combining with an accurate control system to offer efficient performance. Strong and energy-saving power system with professional off-road chassis challenges complex road conditions. On-board diagnosis, lubrication-free design, and swing-out engine tray make maintenance more convenient and effectively reduce the total cost of ownership.
Highlights
Features
Full Specification
Highlights
| 300kg platform capacity for higher efficiency (ZA14J Only) | ||||
| Build-in multiple pressure control leveling system to enhance stability | ||||
| Precise load sensing system to improve overload safety operations | ||||
| Integrated with rotary reducer to enhance rotation stability | ||||
| Hostile Kits available for dusty working environment | ||||
| Deadweight Lowering System for smooth operation and energy efficiency |
Features
| Standard Features | Accessories ＆ Options | |||
| Horn | Platform work lights | |||
| All motion alarm | Anti-collision device | |||
| Proportional control | AC power to platform | |||
| Self-closing entry gate | ||||
| Flashing amber beacon | ||||
| Auto-leveling system | ||||
| Emergency stop button | ||||
| Over tilt protection system | ||||
| Emergency descent system | ||||
| On-board diagnostic system | ||||
| Oscillating axle | ||||
| 4.3′ LED display | ||||
| Load sensing system | ||||
| Swing-out engine tray | ||||
Full Specification

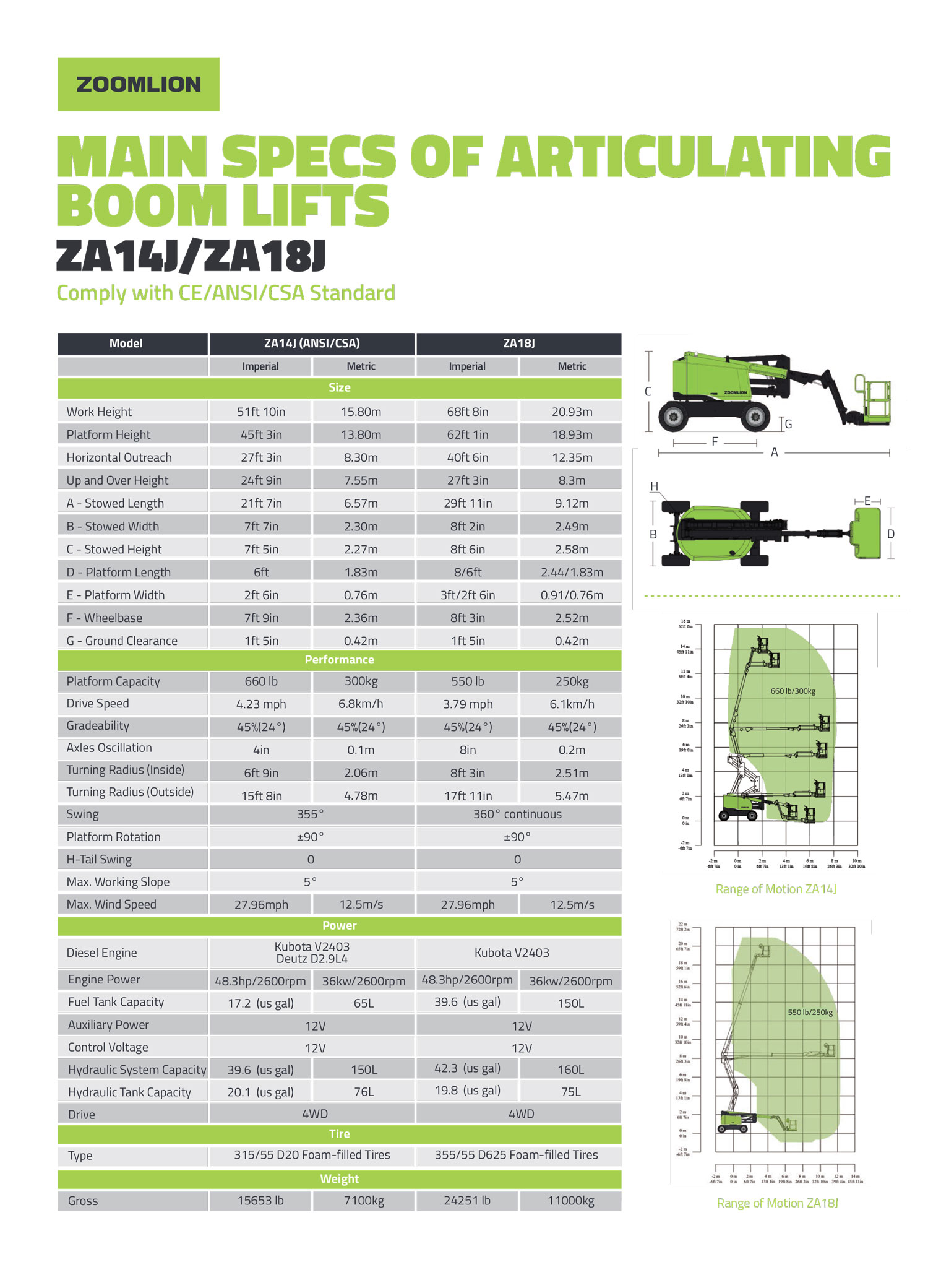

| Model | ZA14J | ZA18J | ||
| Metric | Imperial | Metric | Imperial | |
| Size | ||||
| Work Height | 15.80m | 51ft 10in | 20.93m | 68ft 8in |
| Platform Height | 13.80m | 45ft 3in | 18.93m | 62ft 1in |
| Horizontal Outreach | 8.30m | 27ft 3in | 12.35m | 40ft 6in |
| Up and Over Height | 7.55m | 24ft 9in | 8.3m | 27ft 3in |
| A – Stowed Length | 6.57m | 21ft 7in | 9.12m | 29ft 11in |
| B – Stowed Width | 2.30m | 7ft 7in | 2.49m | 8ft 2in |
| C – Stowed Height | 2.27m | 7ft 5in | 2.58m | 8ft 6in |
| D – Platform Length | 1.83m | 6ft | 2.44/1.83m | 8/6ft |
| E – Platform Width | 0.76m | 2ft 6in | 0.91/0.76m | 3ft/2ft 6in |
| F – Wheelbase | 2.36m | 7ft 9in | 2.52m | 8ft 3in |
| G – Ground Clearance | 0.42m | 1ft 5in | 0.42m | 1ft 5in |
| Performance | ||||
| Platform Capacity | 300kg | 660 lb | 250kg | 550 lb |
| Drive Speed | 6.8km/h | 4.23 mph | 6.1km/h | 3.79 mph |
| Gradeability | 45% | 45% | 45% | 45% |
| Axles Oscillation | 0.1m | 4in | 0.2m | 8in |
| Turning Radius (Inside) | 2.06m | 6ft 9in | 2.51m | 8ft 3in |
| Turning Radius (Outside) | 4.78m | 15ft 8in | 5.47m | 17ft 11in |
| Swing | 355° | 360° continuous | ||
| Platform Rotation | ±90° | ±90° | ||
| H-Tail Swing | 0 | 0 | ||
| Max. Working Slope | 5° | 5° | ||
| Max. Wind Speed | 12.5m/s | 27.96mph | 12.5m/s | 27.96mph |
| Power | ||||
| Diesel Engine | Kubota V2403 | Kubota V2403 | ||
| Engine Power | 36kw/2600rpm | 48.3hp/2600rpm | 36kw/2600rpm | 48.3hp/2600rpm |
| Fuel Tank Capacity | 65L | 17.2 (us gal) | 150L | 39.6 (us gal) |
| Auxiliary Power | 12V | 12V | ||
| Control Voltage | 12V | 12V | ||
| Hydraulic System Capacity | 150L | 39.6 (us gal) | 160L | 42.3 (us gal) |
| Hydraulic Tank Capacity | 76L | 20.1 (us gal) | 75L | 19.8 (us gal) |
| Tire | ||||
| Type | 315/55 D20 Foam-filled Tires | 355/55 D625 Foam-filled Tires | ||
| Weight | ||||
| Gross | 7100kg | 15653 lb | 11000kg | 24251 lb |
Highlights
Features
Highlights
Features
Standard Features
Horn
All motion alarm
Proportional control
Self-closing entry gate
Flashing amber beacon
Auto-leveling system
Emergency stop button
Over tilt protection system
Emergency descent system
On-board diagnostic system
Oscillating axle
4.3′ LED display
Load sensing system
Swing-out engine tray
Accessories ＆ Options
Platform work lights
Anti-collision device
AC power to platform
Accessories ＆ Options

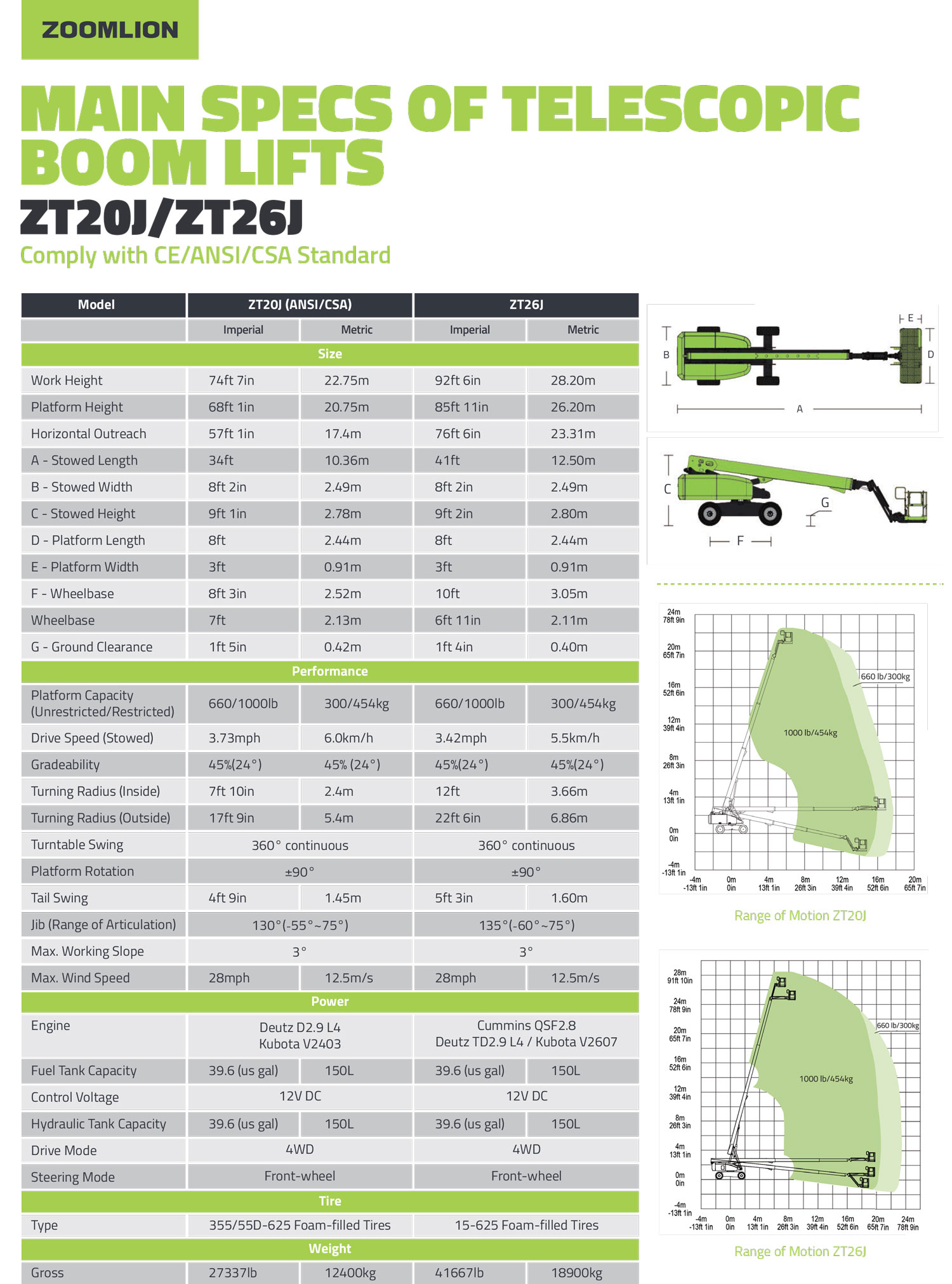

Zoomlion telescopic boom lifts are engineered to enhance working efficiency and offer greater horizontal outreach than any other type of aerial work platform. These units feature stable extension and great gradeability in rough terrain, offering a dual lift capacity of 300 kg unrestricted and 454 kg restricted. It is ideal for outdoor construction and industrial applications.
Telescopic Boom Lifts

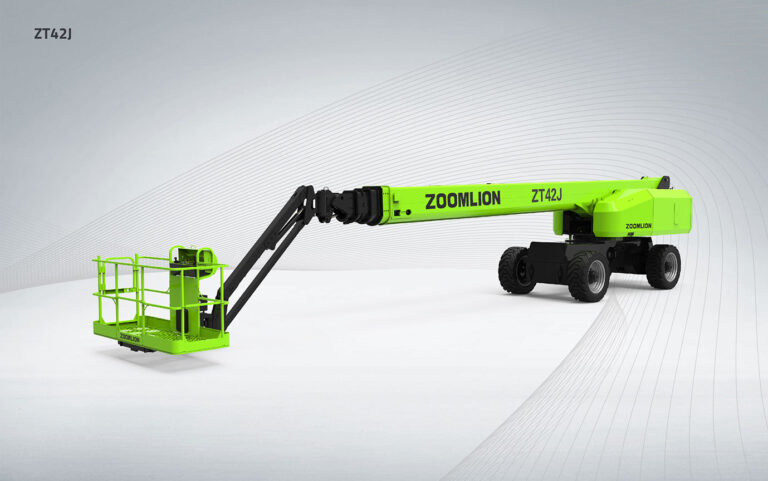

ZT42J
Platform Capacity (Unrestricted/Restricted) - 300/454kg
Diesel Engine - Kubota V2607
Cummins QSF2.8
Work Height - 40.2m
Horizontal Outreach - 25m
ZT42J is a newly developed aerial work platform. This unit features the advantages of telescopic boom lifts, and delivers industry-leading vertical height, horizontal outreach and lift capacity. Provide a vertical reach of 42.08 m (138ft 1in) and horizontal reach of 25 m , offer a dual lift capacity of 300/454 kg (660/1000lb) and 15 safety protection measures, and equip with PLC control and CAN bus communication technology. Compound movement provides simple and comfortable operation. Automatic fault detection and alarm display function offer convenient maintenance. Creative U-shaped boom design effectively reduces the weight of the boom and deflection, and provides better machine stability; R-shaped slider and U-shaped channel steel design at the bottom of the boom, effectively reducing the lateral deflection of the boom; Jib rotary function provides larger working range and more flexible motion.
Highlights
Features
Full Specification
Highlights
| Perform dual capacity design, up to 300/454kg (660/1000lb) | ||
| Rough terrain chassis features swing axle function, easy to achieve 45% gradeability | ||
| Creative outrigger telescopic method; strong field applicability, low telescopic failure rate, and effective prevention of abnormal tire wear | ||
| Smooth & stable boom extension, the telescopic efficiency of the boom is increased by 30% compared with that of the double-cylinder telescopic boom | ||
| Better work envelop performance, 10% larger than competitor | ||
| Zoomlion AWM Romote Monitoring and Rental Managament System | ||
| R-shaped slider and U-shaped channel steel design at the bottom of the boom, effectively reducing the lateral deflection of the boom | ||
| U-shaped boom design effectively reduces the weight of the boom and deflection, and provides better machine stability; | ||
| Jib rotary function provides larger working range and more flexible motion | ||
| Swing-out engine tray |
Features
| Standard Features | Accessories ＆ Options | ||
| Horn | Platform work lights | ||
| Proportional control | Anti-collision device | ||
| All motion alarm | AC power to platform | ||
| Flashing amber beacon | |||
| Self-closing entry gate | |||
| Emergency descent system | |||
| Emergency stop button | |||
| Auto-leveling system | |||
| On-board diagnostic system | |||
| Tilt protection system | |||
| Oscillating axle | |||
| Load sensing system | |||
| 4.3′ Led display | |||
| Swing-out engine tray | |||
Full Specification

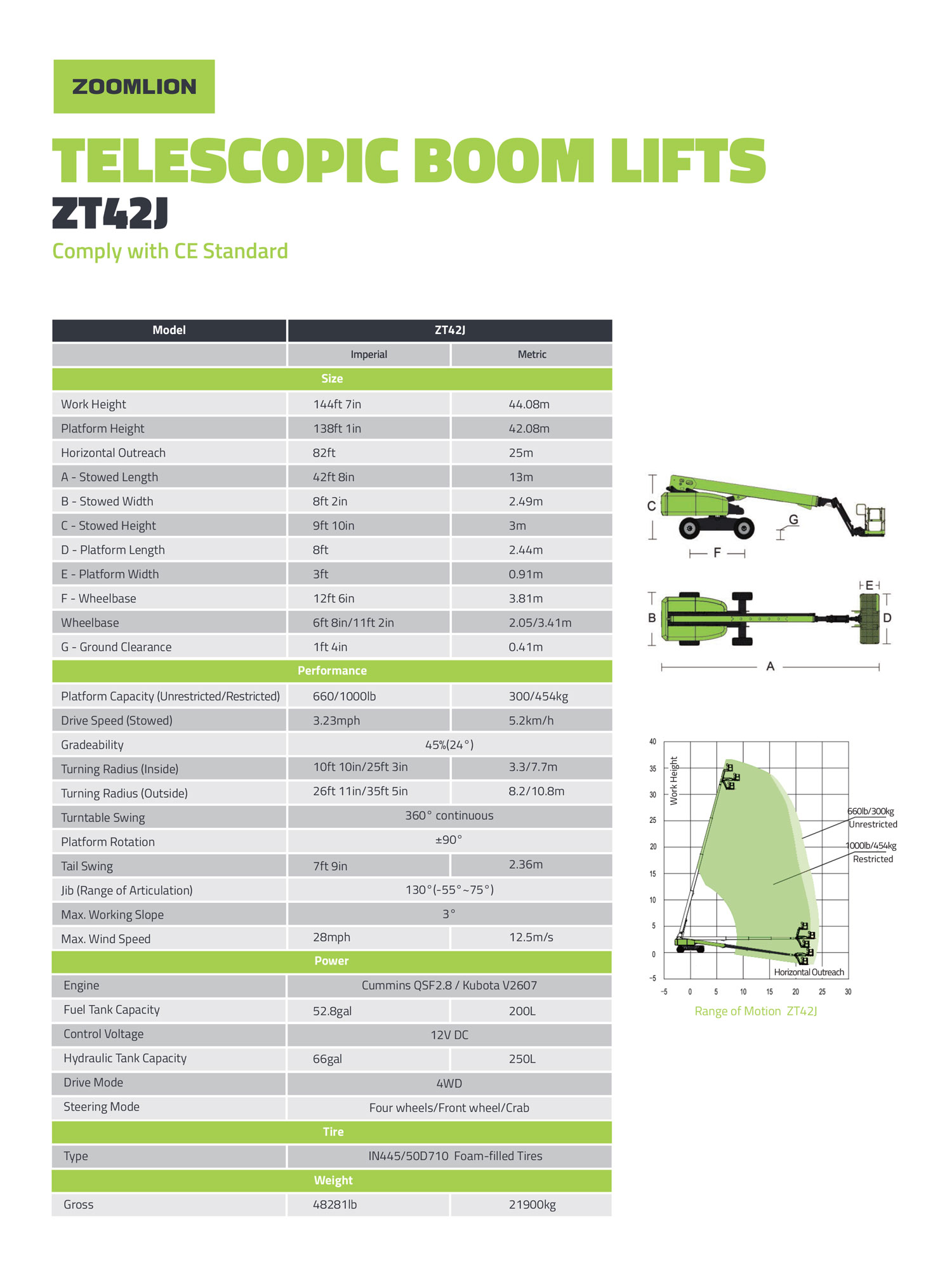

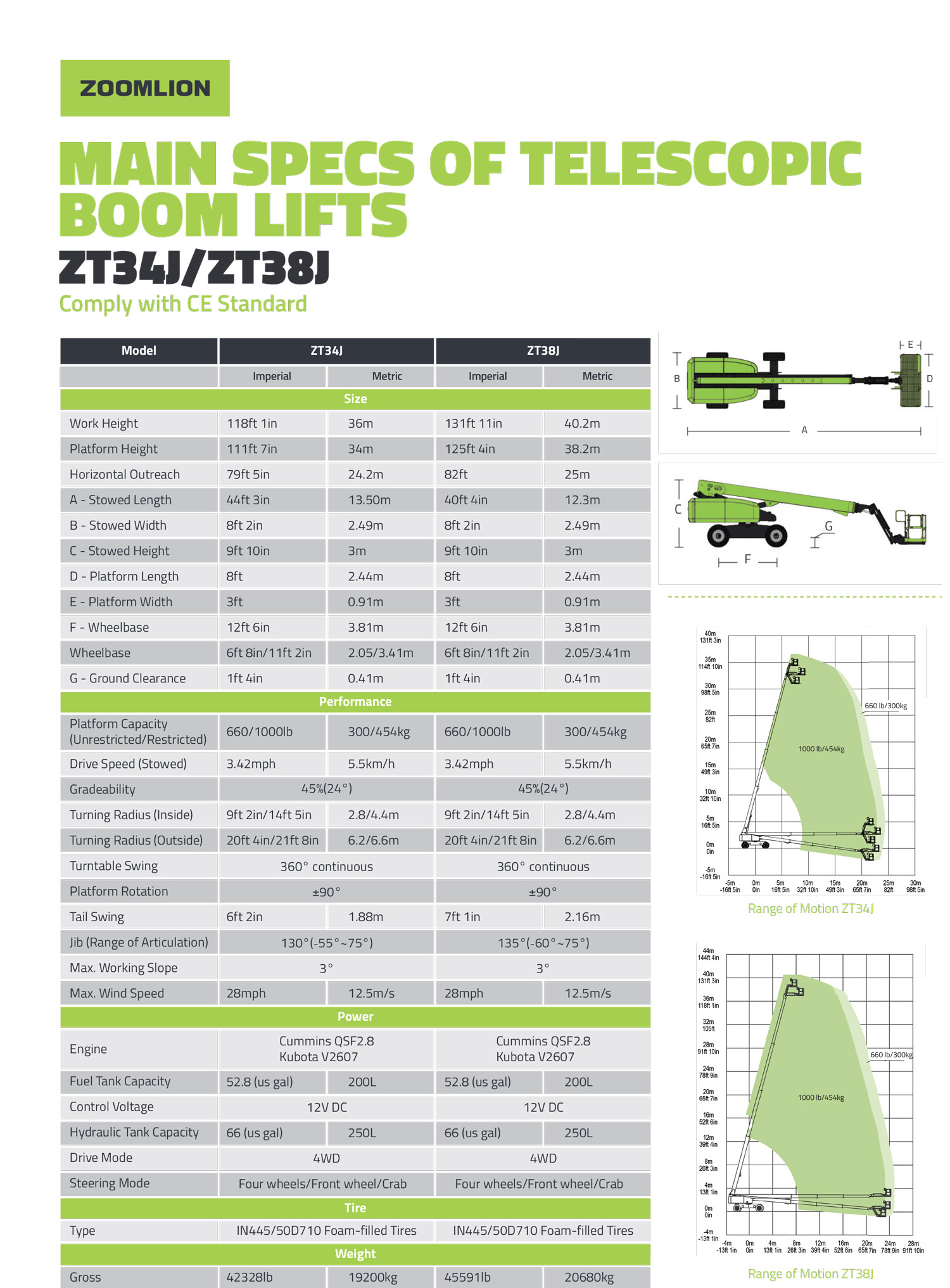

| Model | ZT42J | |
| Metric | Imperial | |
| Size | ||
| Work Height | 44.08m | 144ft 7in |
| Platform Height | 42.08m | 138ft 1in |
| Horizontal Outreach | 25m | 82ft |
| A – Stowed Length | 13m | 42ft 8in |
| B – Stowed Width | 2.49m | 8ft 2in |
| C – Stowed Height | 3m | 9ft 10in |
| D – Platform Length | 2.44m | 8ft |
| E – Platform Width | 0.91m | 3ft |
| F – Wheelbase | 3.81m | 12ft 6in |
| G – Ground Clearance | 0.41m | 1ft 4in |
| Performance | ||
| Platform Capacity (Unrestricted/Restricted) | 300/454kg | 660/1000lb |
| Drive Speed (Stowed) | 5.2km/h | 3.23mph |
| Gradeability | 45%(24°） | |
| Turning Radius (Inside) | 3.3/7.7m | 10ft 10in/25ft 3in |
| Turning Radius (Outside) | 8.2/10.8m | 26ft 11in/35ft 5in |
| Turntable Swing | 360° continuous | |
| Platform Rotation | ±90° | |
| Tail Swing | 2.36m | 7ft 9in |
| Jib (Range of Articulation) | 130°（﹣55°~75°） | |
| Max. Working Slope | 3° | |
| Max. Wind Speed | 12.5m/s | 28mph |
| Power | ||
| Engine | Deutz TD2.9 L4 Cummins QSF2.8 | |
| Fuel Tank Capacity | 200L | 52.8gal |
| Control Voltage | 12V DC | |
| Hydraulic Tank Capacity | 250L | 66gal |
| Drive Mode | 4WD | |
| Steering Mode | Four wheels/Front wheel/Crab | |
| Tire | ||
| Type | IN445/50D710 Foam-filled Tires | |
| Weight | ||
| Gross | 21900kg | 48281lb |
Highlights
Features
Highlights
Features
Standard Features
Horn
Proportional control
All motion alarm
Flashing amber beacon
Self-closing entry gate
Emergency descent system
Emergency stop button
Auto-leveling system
On-board diagnostic system
Tilt protection system
Oscillating axle
Load sensing system
4.3′ Led display
Swing-out engine tray
Accessories ＆ Options
Platform work lights
Anti-collision device
AC power to platform
Accessories ＆ Options
ZT34J
Platform Capacity (Unrestricted/Restricted) - 300/454kg
Diesel Engine - Cummins QSF2.8
Kubota V2607
Work Height - 36m
Horizontal Outreach - 24.2m

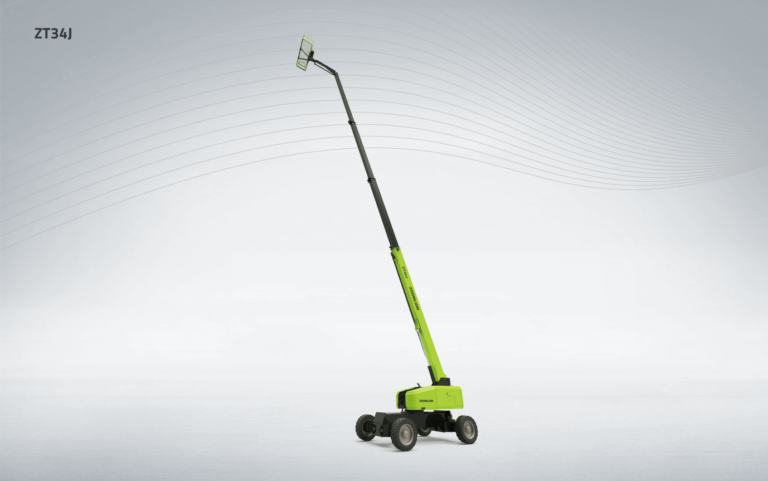

ZT34J is a newly developed aerial work platform. This unit offers greater vertical height and lift capacity than similar products. With a vertical reach of 34 m and a horizontal reach of 23.5 m, this boom offers a dual lift capacity of 300/454 kg and 15 safety protection measures and is equipped with PLC control and CAN bus communication technology. Automatic fault detection and alarm display function offer convenient maintenance.
ZT38J
Platform Capacity (Unrestricted/Restricted) - 300/454kg
Diesel Engine - Deutz TD2.9 L4
Cummins QSF2.8
Work Height - 44.08m
Horizontal Outreach - 25m
ZT38J is a newly developed aerial work platform. This unit features the advantages of telescopic boom lifts, and delivers industry-leading vertical height, horizontal outreach and lift capacity. Provide a vertical reach of 38.2 m (125ft 4in) and horizontal reach of 25 m , offer a dual lift capacity of 300/454 kg (660/1000lb) and 15 safety protection measures, and equip with PLC control and CAN bus communication technology. Compound movement provides simple and comfortable operation. Automatic fault detection and alarm display function offer convenient maintenance.
Highlights
Features
Full Specification
Highlights
| Perform dual capacity design, up to 300/454kg (660/1000lb) | ||
| Rough terrain chassis features swing axle function, easy to achieve 45% gradeability | ||
| Creative outrigger telescopic method; strong field applicability, low telescopic failure rate, and effective prevention of abnormal tire wear | ||
| Smooth & stable boom extension, the telescopic efficiency of the boom is increased by 30% compared with that of the double-cylinder telescopic boom | ||
| Better work envelop performance, 10% larger than competitor | ||
| Zoomlion AWM Romote Monitoring and Rental Managament System |
Features
| Standard Features | Accessories ＆ Options | ||
| Horn | Platform work lights | ||
| Proportional control | Anti-collision device | ||
| All motion alarm | AC power to platform | ||
| Flashing amber beacon | |||
| Self-closing entry gate | |||
| Emergency descent system | |||
| Emergency stop button | |||
| Auto-leveling system | |||
| On-board diagnostic system | |||
| Tilt protection system | |||
| Oscillating axle | |||
| Load sensing system | |||
| 4.3′ Led display | |||
| Swing-out engine tray | |||
Full Specification
| Main Specs of Telescopic Boom Lifts | ||
| Comply with CE/ANSI/GB Standard | ||
| Model | ZT34J | ZT34J |
| Size | ||
| Work Height | 36m | 40.2m |
| Platform Height | 34m | 38.2m |
| Horizontal Outreach | 24.2m | 25m |
| A – Stowed Length | 13.50m | 12.3m |
| B – Stowed Width | 2.49m | 2.49m |
| C – Stowed Height | 3m | 3m |
| D – Platform Length | 2.44m | 2.44m |
| E – Platform Width | 0.91m | 0.91m |
| F – Wheelbase | 3.80m | 3.81m |
| G – Ground Clearance | 0.41m | 0.41m |
| Performance | ||
| Platform Capacity (Unrestricted/Restricted) | 300/454kg | 300/454kg |
| Drive Speed (Working) | 5.5km/h | 5.5km/h |
| Gradeability | 45% (24°） | 45%(24°） |
| Turning Radius (Inside) | 2.8/4.4m | 2.8/4.4m |
| Turning Radius (Outside) | 6.2/6.6m | 6.2/6.6m |
| Turntable Swing | 360°continuous | 360° continuous |
| Platform Rotation | ±90° | ±90° |
| Tail Swing | 1.88m | 2.16m |
| Jib (Range of Articulation) | 130°（﹣55°~75°） | 135°（﹣60°~75°） |
| Max. Working Slope | 3° | 3° |
| Max. Wind Speed | 12.5m/s | 12.5m/s |
| Power | ||
| Engine | Cummins QSF2.8 | Kubota V2607 |
| Kubota V2607 | Cummins QSF2.8 | |
| Fuel Tank Capacity | 200L | 200L |
| Control Voltage | 12V DC | 12V DC |
| Hydraulic Tank Capacity | 250L | 250L |
| Drive Mode | 4WD | 4WD |
| Steering Mode | Front-wheel/Rear-wheel/Crab | Four wheels/Front wheel/Crab |
| Tire | ||
| Type | IN445/50D710 | IN445/50D710 Foam-filled Tires |
| Foam-filled Tires | ||
| Weight | ||
| Gross | 19200kg | 20680kg |
Highlights
Features
Highlights
Features
Standard Features
Horn
Proportional control
All motion alarm
Flashing amber beacon
Self-closing entry gate
Emergency descent system
Emergency stop button
Auto-leveling system
On-board diagnostic system
Tilt protection system
Oscillating axle
Load sensing system
4.3′ Led display
Swing-out engine tray
Accessories ＆ Options
Platform work lights
Anti-collision device
AC power to platform
Accessories ＆ Options
ZT30J
Platform Capacity (Unrestricted/Restricted) - 230/340kg
Diesel Engine - Cummins QSF2.8
Work Height - 32.48m
Horizontal Outreach - 19.78m
With modular, lightweight, unitized, and smart designs, ZT30J telescopic boom lift features high capacities and great reliability. Four-wheel drive and oscillating axle system greatly improves off-road performance. With a gradeability of 45%, it can adapt to all kinds of extreme access jobs. Maintenance-free boom system reduces the ownership cost to the maximum extent. Swing-out engine try is designed for convenient maintenance. 2.44×0.91m platform offers spacious operating room. Jib design allows for more flexible boom motion and greater operating envelope.
Highlights
Features
Full Specification
Highlights
| Rough terrain chassis features swing axle function, easy to achieve 45% gradeability | ||
| Industry’s first 30-meter product without bridge extending | ||
| Smooth & stable boom extension, the telescopic efficiency of the boom is increased by 30% compared with that of the double-cylinder telescopic boom | ||
| Smooth & stable boom extension technique controls the minimum stable extending speed at 0.015m/s（0.034mph） | ||
| Zoomlion AWM Romote Monitoring and Rental Managament System | ||
| Affordable and maneuverable |
Features
| Standard Features | Accessories ＆ Options |
| Horn | Platform work lights |
| Proportional control | Anti-collision device |
| All motion alarm | AC power to platform |
| Flashing amber beacon | |
| Self-closing entry gate | |
| Emergency descent system | |
| Emergency stop button | |
| Auto-leveling system | |
| On-board diagnostic system | |
| Tilt protection system | |
| Oscillating axle | |
| Load sensing system | |
| 4.3′ Led display | |
| Swing-out engine tray | |
| Platform work light | |
| Anti-collision device | |
| AC power to platform | |
| Outrigger in-situ telescopic function (ZT34J/ZT38J/ZT42J) |
Full Specification
| Model | ZT30J | |
| Metric | Imperial | |
| Size | ||
| Work Height | 32.48m | 106ft 7in |
| Platform Height | 30.48m | 100ft |
| Horizontal Outreach | 19.78m | 64ft 11in |
| A – Stowed Length | 12.43m | 40ft 9in |
| B – Stowed Width | 2.49m | 8ft 2in |
| C – Stowed Height | 2.80m | 9ft 2in |
| D – Platform Length | 2.44m | 8ft |
| E – Platform Width | 0.91m | 3ft |
| F – Wheelbase | 3.05m | 10ft |
| Wheelbase | 2.11m | 6ft 11in |
| G – Ground Clearance | 0.40m | 1ft 4in |
| Performance | ||
| Platform Capacity (Unrestricted/Restricted) | 230/340kg | 507/750lb |
| Drive Speed (Stowed) | 5.5km/h | 3.42mph |
| Gradeability | 45%(24°） | |
| Turning Radius (Inside) | 3.66m | 12ft |
| Turning Radius (Outside) | 6.86m | 22ft 6in |
| Turntable Swing | 360°continuous | |
| Platform Rotation | ±90° | |
| Tail Swing | 1.47m | 4ft 10in |
| Jib (Range of Articulation) | 130°（﹣55°~75°） | |
| Max. Working Slope | 3° | |
| Max. Wind Speed | 12.5m/s | 28mph |
| Power | ||
| Engine | Cummins QSF2.8 | |
| Fuel Tank Capacity | 200L | 52.8 (us gal) |
| Control Voltage | 12V DC | |
| Hydraulic Tank Capacity | 150L | 39.6gal |
| Drive Mode | 4WD | |
| Steering Mode | Front-wheel | |
| Tire | ||
| Type | ||
| Weight | ||
| Gross | 19400kg | 42731lb |
ZT20J
Platform Capacity (Unrestricted/Restricted) - 300/454kg
Diesel Engine - Cummins QSF2.8
Kubota V2607
Work Height - 28.20m
Horizontal Outreach - 23.31m
ZT20J features modularized design, light weight, commonalization and intelligence and provides a large lift capacity and high reliability. Four-wheel drive and oscillating axle system greatly improves off-road performance. With a gradeability of 45%, these machines are perfect for work in construction and industrial applications with limited access. Lubrication-free boom system minimizes equipment holding costs. Swing-out engine tray makes regular maintenance more convenient. Remote Monitoring and Rental Management System realizes on-board diagnosis, POST (power on self test), and maintenance alert for efficient fleet management.
ZT26J
Platform Capacity (Unrestricted/Restricted) - 300/454kg
Diesel Engine - Cummins QSF2.8
Kubota V2607
Work Height - 28.20m
Horizontal Outreach - 23.31m

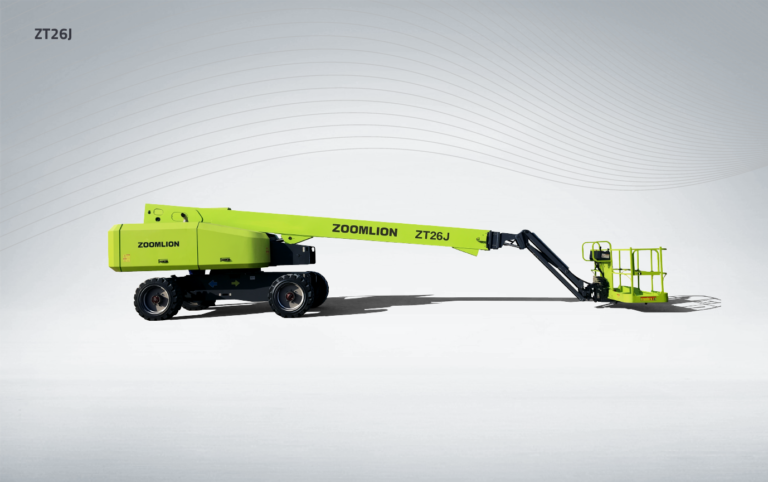

ZT26J features modularized design, light weight, commonalization and intelligence and provides a large lift capacity and high reliability. Four-wheel drive and oscillating axle system greatly improves off-road performance. With a gradeability of 45%, it is designed to easily maneuver in tight spaces on construction and industrial sites. Lubrication-free boom system minimizes equipment holding costs. Swing-out engine tray makes regular maintenance more convenient. Standard 2.44×0.91 m platform offers capacious and comfortable working space. Standard jib increases the maneuverability and provides a larger range of motion.
Highlights
Features
Full Specification
Highlights
| Rough terrain chassis features swing axle function, easy to achieve 45% gradeability | ||
| Industry’s first 30-meter product without bridge extending | ||
| Smooth & stable boom extension, the telescopic efficiency of the boom is increased by 30% compared with that of the double-cylinder telescopic boom | ||
| Smooth & stable boom extension technique controls the minimum stable extending speed at 0.015m/s（0.034mph） | ||
| Zoomlion AWM Romote Monitoring and Rental Managament System | ||
| Affordable and maneuverable |
Features
| Standard Features | Accessories ＆ Options |
| Horn | Platform work lights |
| Proportional control | Anti-collision device |
| All motion alarm | AC power to platform |
| Flashing amber beacon | |
| Self-closing entry gate | |
| Emergency descent system | |
| Emergency stop button | |
| Auto-leveling system | |
| On-board diagnostic system | |
| Tilt protection system | |
| Oscillating axle | |
| Load sensing system | |
| 4.3′ Led display | |
| Swing-out engine tray | |
| Platform work light | |
| Anti-collision device | |
| AC power to platform | |
| Outrigger in-situ telescopic function (ZT34J/ZT38J/ZT42J) |
Full Specification
| Comply with CE/ANSI/GB Standard | |||
| Model | ZT34J | ZT26J | ZT20J |
| Size | |||
| Work Height | 36m | 28.20m | 22.75m |
| Platform Height | 34m | 26.20m | 20.75m |
| Horizontal Outreach | 23.50m | 22.71m | 16.80m |
| A – Stowed Length | 13.50m | 12.5m | 10.36m |
| B – Stowed Width | 2.49m | 2.49m | 2.49m |
| C – Stowed Height | 3m | 2.80m | 2.78m |
| D – Platform Length | 2.44m | 2.44m | 2.44m |
| E – Platform Width | 0.91m | 0.91m | 0.91m |
| F – Wheelbase | 3.80m | 3.05m | 2.52m |
| Wheelbase | 2.05/3.41m | 2.11m | 2.13m |
| G – Ground Clearance | 0.41m | 0.40m | 0.42m |
| Performance | |||
| Platform Capacity (Unrestricted/Restricted) | 300/454kg | 300kg/454kg | 300kg/454kg |
| Drive Speed (Working) | 5.5km/h | 5.5km/h | 6.0km/h |
| Gradeability | 45%(24°） | 45% (24°） | 45% (24°） |
| Turning Radius (Inside) | 2.80m | 3.66m | 2.4m |
| Turning Radius (Outside) | 5.70m | 6.86m | 5.4m |
| Turntable Swing | 360°continuous | 360°continuous | 360°continuous |
| Platform Rotation | ±90° | ±90° | ±90° |
| Tail Swing | 1.88m | 1.60m | 1.45m |
| Jib (Range of Articulation) | 130°（﹣55°~75°） | 130°（﹣55°~75°） | 135°（﹣60°~75°） |
| Max. Working Slope | 3° | 3° | 3° |
| Max. Wind Speed | 12.5m/s | 12.5m/s | 12.5m/s |
| Power | |||
| Engine | Kohler KDI2504TCR | Deutz TD2.9 L4/Cummins QSF2.8 | Duetz D2.9L4 |
| Fuel Tank Capacity | 200L | 150L | 130L |
| Control Voltage | 12V DC | 12V DC | 12V DC |
| Hydraulic Tank Capacity | 250L | 150L | 150L |
| Drive Mode | 4WD | 4WD | 4WD |
| Steering Mode | Front-wheel/Rear-wheel/Crab | Front-wheel | Front-wheel |
| Tire | |||
| Type | IN445/50D710 Foam-filled Tires | 15-625 Foam-filled Tires | 355/55D-625 Foam-filled Tires |
| Weight | |||
| Gross | 19200kg | 18900kg | 12200kg |
Highlights
Features
Highlights
Features
Standard Features
Horn
Proportional control
All motion alarm
Flashing amber beacon
Self-closing entry gate
Emergency descent system
Emergency stop button
Auto-leveling system
On-board diagnostic system
Tilt protection system
Oscillating axle
Load sensing system
4.3′ Led display
Swing-out engine tray
Accessories ＆ Options
Platform work lights
Anti-collision device
AC power to platform
Platform work light
Anti-collision device
AC power to platform
Outrigger in-situ telescopic function (ZT34J/ZT38J/ZT42J)
Accessories ＆ Options
About MN Engineering Solutions
Established 2014, M.N. Engineering Solutions (MNES) provide best In-Class Engineering Products and Solutions for the industry, built upon a foundation of knowledge, excellence and relations. Our team bring more than 20 years of collective experience delivering high quality products & solutions to a wide range of customers across India.
- +91 9711996512
- iqbal@mnes.in
- Sihi Sikanderpur Road, Near Stella Co., VPO: Kherki Daula, Gurgaon – 122 004
