Zoomlion Scissor Lifts
Up to 380kg platform capacity with better performance on-the-job
Robust & build to last, reliable and safe
Scissor Lifts
Scissor Lifts (HD Series)
HD series scissor lifts are hydraulic pump-driven products, with the existing platform heights ranging from 4m to 14m. Featuring low CG, stable operation and large capacity, this series deliver excellent performance for a productive day

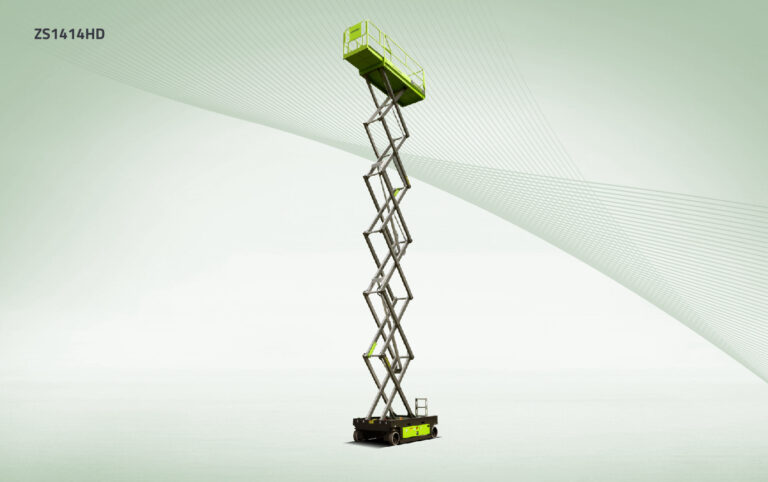

ZS1414HD
Work Height - 15.7m
Platform Height-Elevated - 13.7m
Platform Capacity - 260kg
Battery - 4×12V/300Ah | Charger - 24V/30A

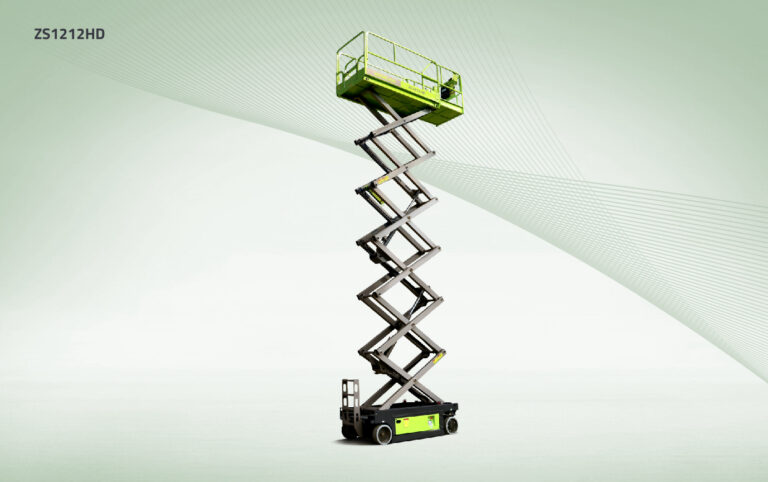

ZS1212HD
Work Height - 13.80m
Platform Height-Elevated - 11.80m
Platform Capacity - 350kg
Battery - 4×12V/300Ah | Charger - 24V/30A

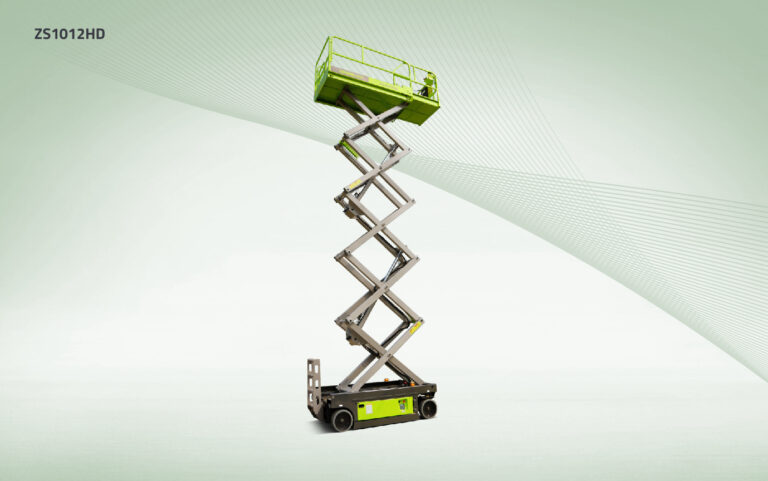

ZS1012HD
Work Height - 11.80m
Platform Height-Elevated - 9.80m
Platform Capacity - 350kg
Battery - 4×6V/240Ah | Charger - 24V/30A

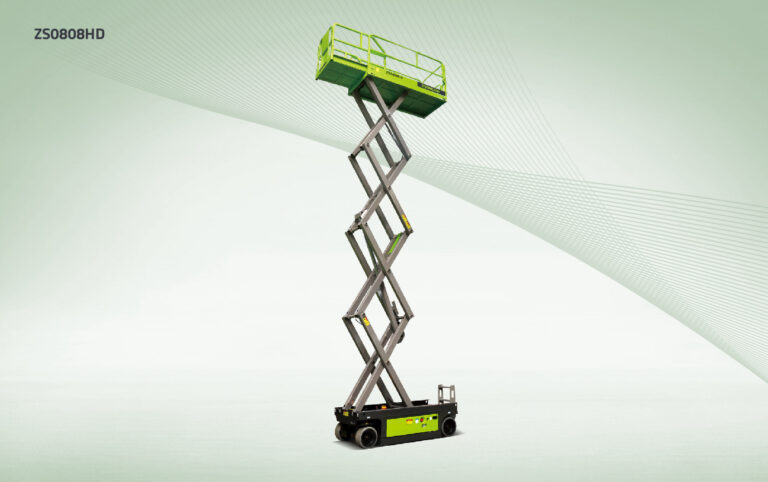

ZS0808HD
Work Height - 10.00m
Platform Height-Elevated - 8.00m
Platform Capacity - 230kg
Battery - 4×6V/225Ah | Charger - 24V/30A

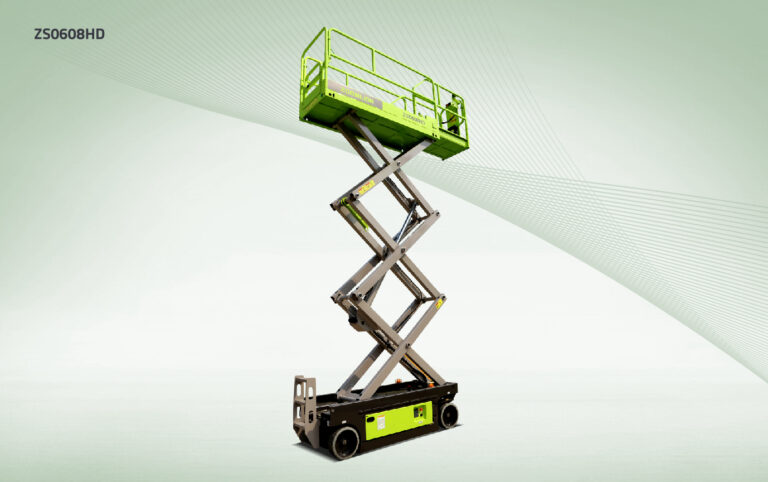

ZS0608HD
Work Height - 8.00m
Platform Height-Elevated - 6.00m
Platform Capacity - 380kg
Battery - 4×6V/225Ah | Charger - 24V/30A

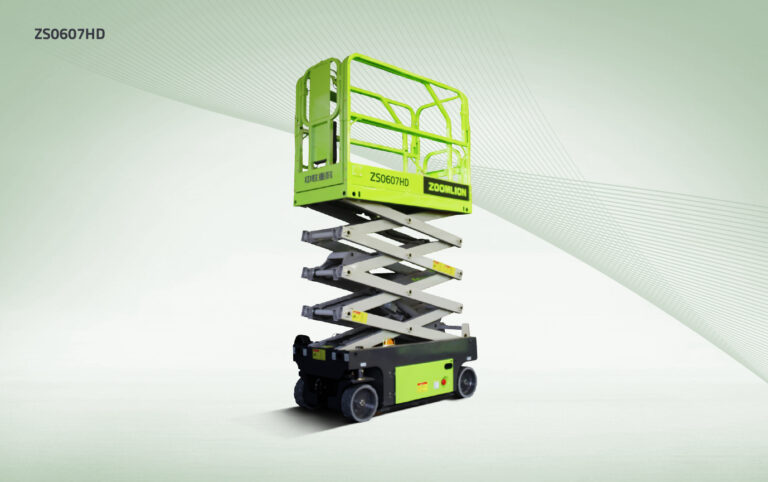

ZS0607HD
Work Height - 7.87m
Platform Height-Elevated - 5.87m
Platform Capacity - 230kg
Battery - 4×6V/210Ah | Charger - 24V/30A
Highlights
Features
Full Specification
Highlights
| Cost Effectiveness | Easy Maintenance & Service | |||||
|
| |||||
|
| |||||
|
| |||||
| Intelligent Connectivity | ||||||
| ||||||
Features
| Standard Features | ||||||
| Proportional controls | Drivable at full height | |||||
| All motion alarm | Scissor maintenance prop | |||||
| Fold-down handrails | Charging protection system | |||||
| Flashing amber beacon | Extension deck (unidirectional) | |||||
| Self-closing entry gate | Autobrake system | |||||
| Emergency descent system | On-board diagnostic | |||||
| Active pothole protection system | Emergency stop button | |||||
| Hour meter | Over tilt protective system | |||||
| Forklift pockets | Zoomlion AWM Remote Monitoring and Rental Management System * | |||||
| GPS positioning and tracking system * | ||||||
| Accessories & Options | ||||||
| Airline to platform | AC power to platform | |||||
| Load sensing system | Platform work lights | |||||
| Maintenance-free battery | ||||||
| Horn | ||||||
Full Specification

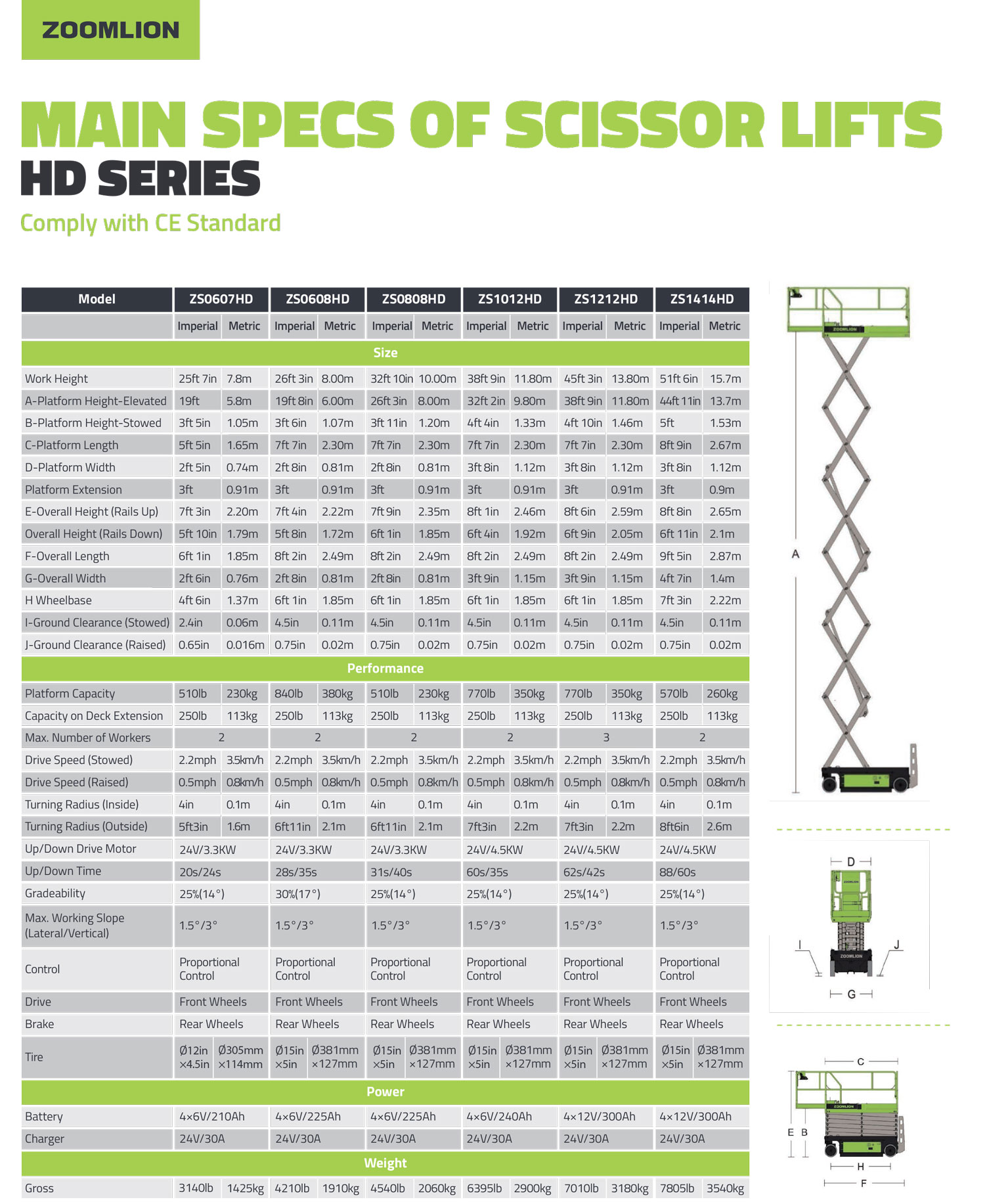

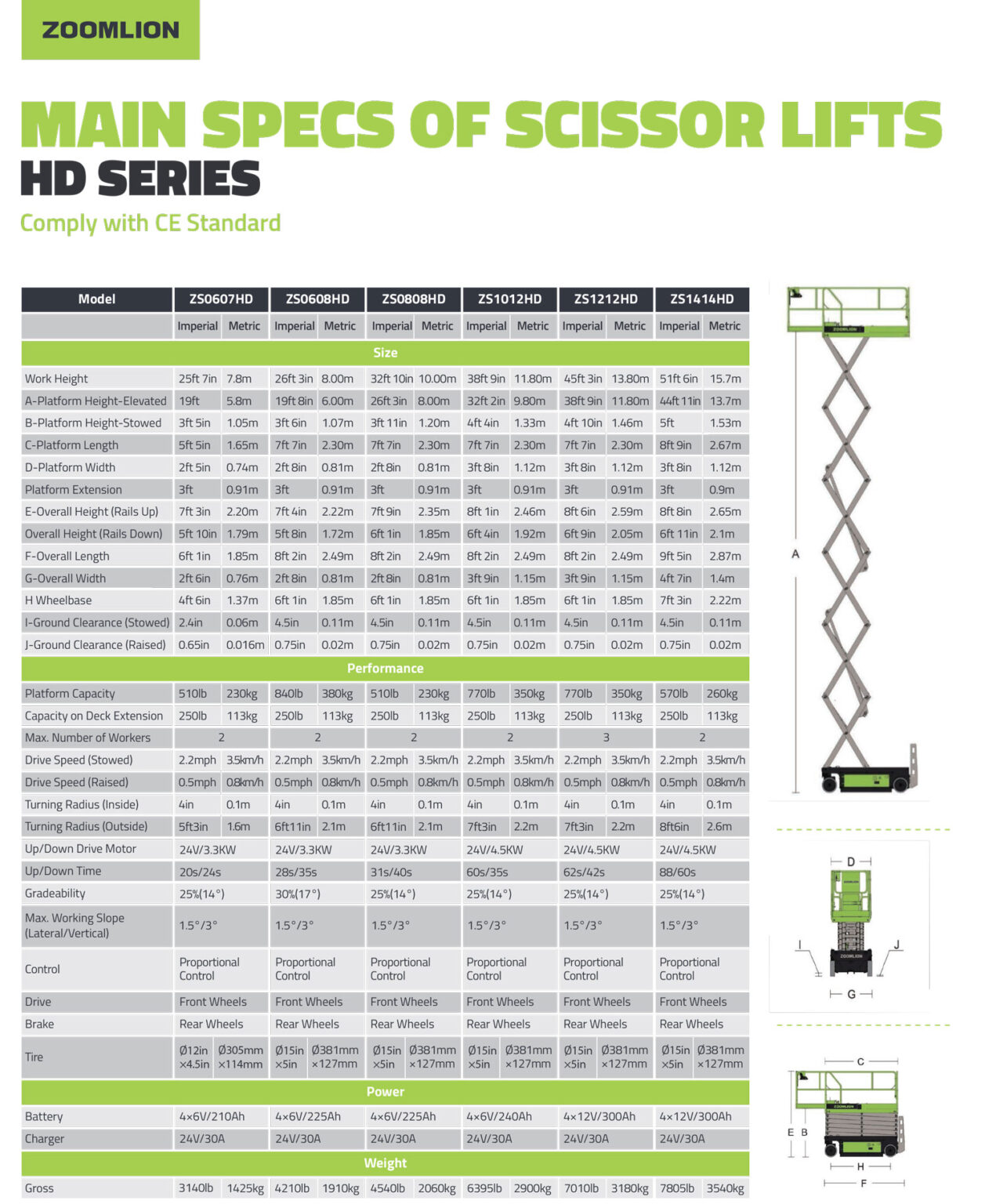

| Main Specs of Scissor Lifts (HD Series) | ||||||
| Comply with CE/ANSI/GB Standard | ||||||
| Model | ZS1414HD | ZS1212HD | ZS1012HD | ZS0808HD | ZS0608HD | ZS0607HD |
| Size | ||||||
| Work Height | 15.7m | 13.80m | 11.80m | 10.00m | 8.00m | 7.87m |
| A – Platform Height-Elevated | 13.7m | 11.80m | 9.80m | 8.00m | 6.00m | 5.87m |
| B – Platform Height-Stowed | 1.53m | 1.46m | 1.33m | 1.20m | 1.07m | 1.05m |
| C – Platform Length | 2.67m | 2.30m | 2.30m | 2.30m | 2.30m | 1.65m |
| D – Platform Width | 1.12m | 1.12m | 1.12m | 0.81m | 0.81m | 0.74m |
| Platform Extension | 0.9m | 0.91m | 0.91m | 0.91m | 0.91m | 0.91m |
| E – Overall Height (Rails Up) | 2.65m | 2.59m | 2.46m | 2.35m | 2.22m | 2.20m |
| Overall Height (Rails Down) | 2.1m | 2.05m | 1.92m | 1.85m | 1.72m | 1.79m |
| F – Overall Length | 2.87m | 2.49m | 2.49m | 2.49m | 2.49m | 1.85m |
| G – Overall Width | 1.4m | 1.15m | 1.15m | 0.81m | 0.81m | 0.76m |
| H – Wheelbase | 2.22m | 1.85m | 1.85m | 1.85m | 1.85m | 1.37m |
| I – Ground Clearance (Stowed) | 0.11m | 0.11m | 0.11m | 0.11m | 0.11m | 0.06m |
| J – Ground Clearance (Raised) | 0.02m | 0.02m | 0.02m | 0.02m | 0.02m | 0.016m |
| Performance | ||||||
| Platform Capacity | 260kg | 350kg | 350kg | 230kg | 380kg | 230kg |
| Capacity on Deck Extension | 113kg | 113kg | 113kg | 113kg | 113kg | 113kg |
| Max. Number of Workers | 2 | 3 | 2 | 2 | 2 | 2 |
| Drive Speed (Stowed) | 3.5km/h | 3.5km/h | 3.5km/h | 3.5km/h | 3.5km/h | 3.5km/h |
| Drive Speed (Raised) | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h |
| Turning Radius (Inside) | 0.1m | 0.1m | 0.1m | 0.1m | 0.1m | 0.1m |
| Turning Radius (Outside) | 2.6m | 2.2m | 2.2m | 2.1m | 2.1m | 1.6m |
| Up/Down Drive Motor | 24V/4.5KW | 24V/4.5KW | 24V/4.5KW | 24V/3.3KW | 24V/3.3KW | 24V/3.3KW |
| Up/Down Time | 88/60s | 62s/42s | 60s/35s | 31s/40s | 28s/35s | 20s/24s |
| Gradeability | 25% | 25%(14°) | 25%(14°) | 25%(14°) | 30%(17°) | 25%(14°) |
| Max. Working Slope (Lateral/Vertical) | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° |
| Control | Proportional Control | Proportional Control | Proportional Control | Proportional Control | Proportional Control | Proportional Control |
| Drive | Front Wheels | Front Wheels | Front Wheels | Front Wheels | Front Wheels | Front Wheels |
| Brake | Rear Wheels | Rear Wheels | Rear Wheels | Rear Wheels | Rear Wheels | Rear Wheels |
| Tire | ∅381mmX127mm | ф381mm×127mm | ф381mm×127mm | ф381mm×127mm | ф381mm×127mm | ф305mm×114mm |
| Power | ||||||
| Battery | 4×12V/300Ah | 4×12V/300Ah | 4×6V/240Ah | 4×6V/225Ah | 4×6V/225Ah | 4×6V/210Ah |
| Charger | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A |
| Weight | ||||||
| Gross | 3540kg | 3180kg | 2900kg | 2060kg | 1910kg | 1425kg |
Highlights
Features
Highlights
Features
Scissor Lifts (HD-Li Series)
HD-Li series scissor lifts offer an excellent combination of working heights and lifting capacity capabilities with hydraulic drive motors and Lithium power. Our Li-ion batteries have a 5-year warranty with triple longer life than the traditional lead acid ones. With Smart Battery Management System (BMS) and the preheating function built-in for cold weather regions as low as -20°C, this series boost productivity and operator confidence with safety power.

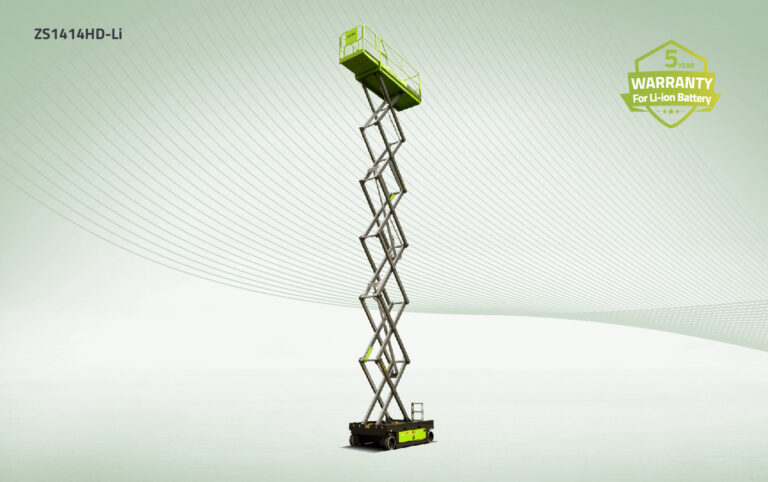

ZS1414HD-Li
Work Height - 15.7m
Platform Height-Elevated - 13.7m
Platform Capacity - 260kg
Battery - 250Ah Li-ion | Charger - 24V/30A | Charger (Option) - 24V/60A
ZS1212HD-Li
Work Height - 13.80m
Platform Height-Elevated - 11.80m
Platform Capacity - 350kg
Battery - 200Ah Li-ion | Charger - 24V/30A | Charger (Option) - 24V/60A

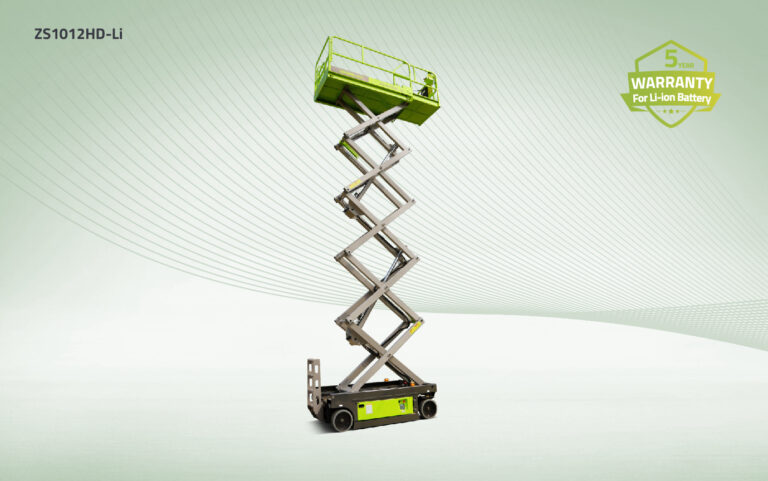

ZS1012HD-Li
Work Height - 11.80m
Platform Height-Elevated - 9.80m
Platform Capacity - 350kg
Battery - 200Ah Li-ion | Charger - 24V/30A | Charger (Option) - 24V/60A

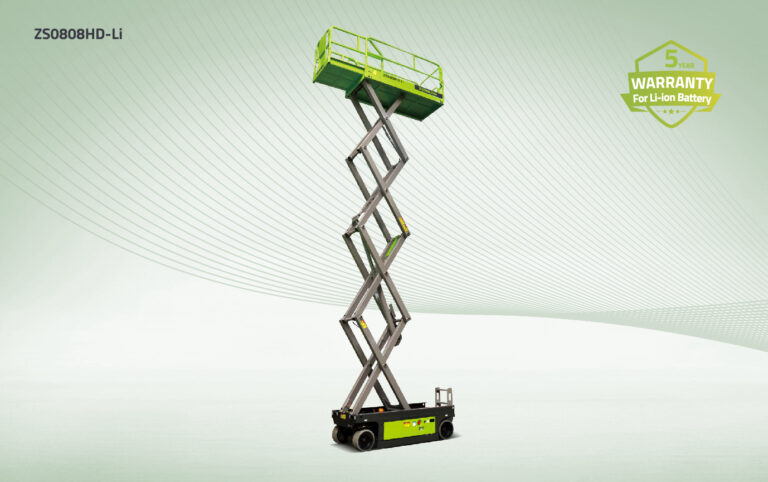

ZS0808HD-Li
Work Height - 10.00m
Platform Height-Elevated - 8.00m
Platform Capacity - 230kg
Battery - 180Ah Li-ion | Charger - 24V/30A | Charger (Option) - 24V/60A

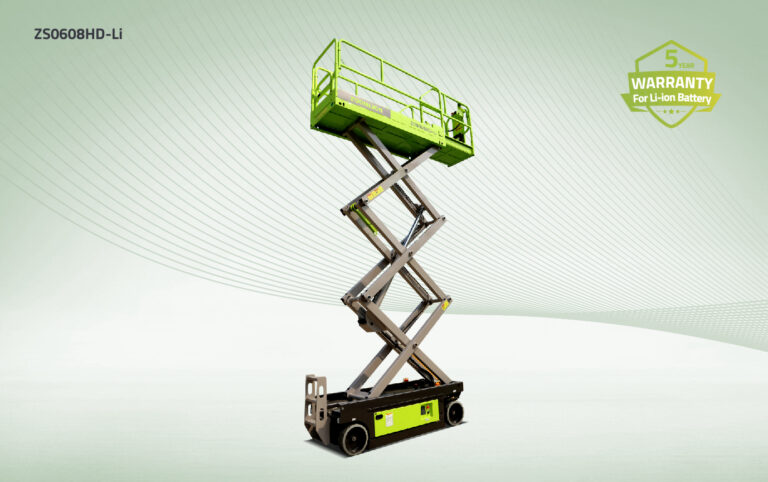

ZS0608HD-Li
Work Height - 8.00m
Platform Height-Elevated - 6.00m
Platform Capacity - 380kg
Battery - 180Ah Li-ion | Charger - 24V/30A | Charger (Option) - 24V/60A

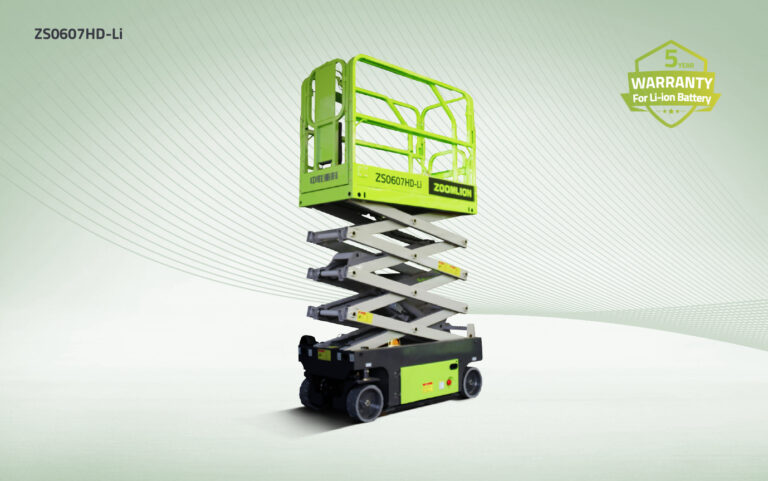

ZS0607HD-Li
Work Height - 7.87m
Platform Height-Elevated - 5.87m
Platform Capacity - 230kg
Battery - 140Ah Li-ion | Charger - 24V/30A | Charger (Option) - 24V/60A
Highlights
Features
Full Specification
Highlights
- Cutting-Edge Driving System with Lithium Power
- 5-year warranty for Li-ion battery
- Maintenance-free and durable Li-ion battery with triple longer lifetime than traditional
- Quick-charge technology save time
- Preheating function built-in for cold weather regions
- Smart Battery Management System (BMS) guarantees safety power.
Intelligent Connectivity
Zoomlion AWM Remote Monitoring and Rental Management System quickly obtains equipment status and realizes on-line operation management. *
Features
| Standard Features | ||||||
| GPS positioning and tracking system | Autobrake system | Drivable at full height | ||||
| Proportional controls | Emergency descent system | Hour meter | ||||
| All motion alarm | Emergency stop button | Extension deck (unidirectional) | ||||
| Fold-down handrails | On-board diagnostic | Charging protection system | ||||
| Flashing amber beacon | Over tilt protective system | Scissor maintenance prop | ||||
| Self-closing entry gate | Active pothole protection system | Forklift pockets | ||||
| Zoomlion AWM Remote Monitoring and Rental Management System * | ||||||
| Accessories & Options | ||||||
| Platform work lights | Load sensing system | |||||
| AC power to platform | Airline to platform | |||||
| Horn | ||||||
Full Specification

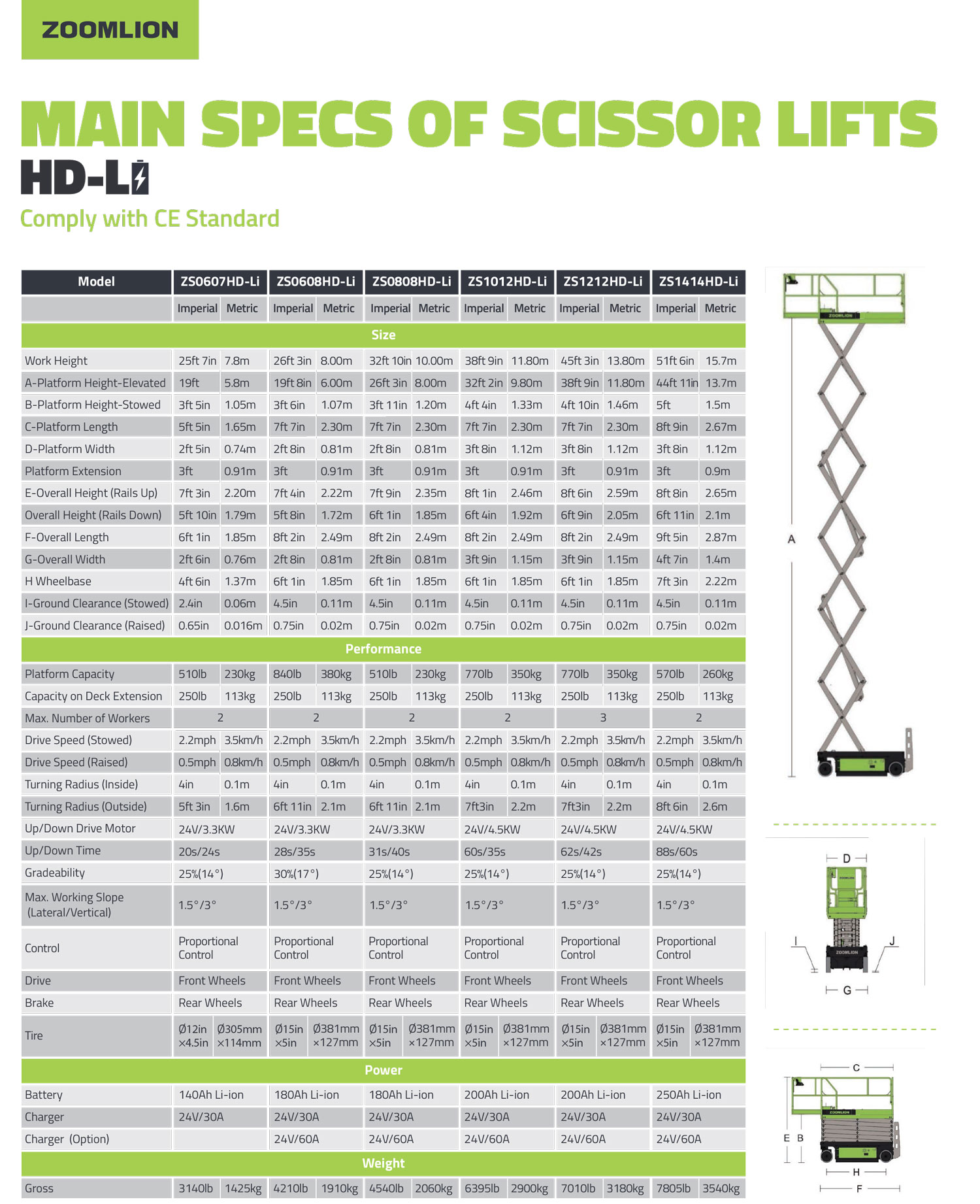

| Main Specs of Scissor Lifts (HD-Li) | ||||||
| Comply with CE/ANSI/GB Standard | ||||||
| Model | ZS1414HD-Li | ZS1212HD-Li | ZS1012HD-Li | ZS0808HD-Li | ZS0608HD-Li | ZS0607HD-Li |
| Size | ||||||
| Work Height | 15.7m | 13.80m | 11.80m | 10.00m | 8.00m | 7.87m |
| A – Platform Height-Elevated | 13.7m | 11.80m | 9.80m | 8.00m | 6.00m | 5.87m |
| B – Platform Height-Stowed | 1.5m | 1.46m | 1.33m | 1.20m | 1.07m | 1.05m |
| C – Platform Dimension (Length) | 2.67m | 2.30m | 2.30m | 2.30m | 2.30m | 1.65m |
| C – Platform Dimension (Width) | 1.12m | 1.12m | 1.12m | 0.81m | 0.81m | 0.74m |
| Platform Extension | 0.9m | 0.91m | 0.91m | 0.91m | 0.91m | 0.91m |
| E – Overall Height (Rails Up) | 2.65m | 2.59m | 2.46m | 2.35m | 2.22m | 2.20m |
| Overall Height (Rails Down) | 2.1m | 2.05m | 1.92m | 1.85m | 1.72m | 1.79m |
| F – Overall Length | 2.87m | 2.49m | 2.49m | 2.49m | 2.49m | 1.85m |
| G – Overall Width | 1.4m | 1.15m | 1.15m | 0.81m | 0.81m | 0.76m |
| H – Wheelbase | 2.22m | 1.85m | 1.85m | 1.85m | 1.85m | 1.37m |
| I – Ground Clearance (Stowed) | 0.11m | 0.11m | 0.11m | 0.11m | 0.11m | 0.06m |
| J – Ground Clearance (Raised) | 0.02m | 0.02m | 0.02m | 0.02m | 0.02m | 0.016m |
| Performance | ||||||
| Platform Capacity | 260kg | 350kg | 350kg | 230kg | 380kg | 230kg |
| Capacity on Deck Extension | 113kg | 113kg | 113kg | 113kg | 113kg | 113kg |
| Max. Number of Workers | 2 | 3 | 2 | 2 | 2 | 2 |
| Drive Speed (Stowed) | 3.5km/h | 3.5km/h | 3.5km/h | 3.5km/h | 3.5km/h | 3.5km/h |
| Drive Speed (Raised) | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h |
| Turning Radius (Inside) | 0.1m | 0.1m | 0.1m | 0.1m | 0.1m | 0.1m |
| Turning Radius (Outside) | 2.6m | 2.2m | 2.2m | 2.1m | 2.1m | 1.6m |
| Up/Down Time | 88s/60s | 62s/42s | 60s/35s | 31s/40s | 28s/35s | 20s/24s |
| Gradeability | 25% | 25%(14°) | 25%(14°) | 25%(14°) | 30%(17°) | 25%(14°) |
| Max. Working Slope (Lateral/Vertical) | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° |
| Control | Proportional Control | Proportional Control | Proportional Control | Proportional Control | Proportional Control | Proportional Control |
| Drive | Front Wheels | Front Wheels | Front Wheels | Front Wheels | Front Wheels | Front Wheels |
| Brake | Rear Wheels | Rear Wheels | Rear Wheels | Rear Wheels | Rear Wheels | Rear Wheels |
| Tire | ф381mm×127mm | ф381mm×127mm | ф381mm×127mm | ф381mm×127mm | ф381mm×127mm | ф305mm×114mm |
| Power | ||||||
| Battery | 250Ah Li-ion | 200Ah Li-ion | 200Ah Li-ion | 180Ah Li-ion | 180Ah Li-ion | 140Ah Li-ion |
| Charger | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A |
| Charger (Option) | 24V/60A | 24V/60A | 24V/60A | 24V/60A | 24V/60A | |
| Weight | ||||||
| Gross | 3540kg | 3180kg | 2900kg | 2060kg | 1910kg | 1425kg |
Highlights
Features
Highlights
- Cutting-Edge Driving System with Lithium Power
- 5-year warranty for Li-ion battery
- Maintenance-free and durable Li-ion battery with triple longer lifetime than traditional
- Quick-charge technology save time
- Preheating function built-in for cold weather regions
- Smart Battery Management System (BMS) guarantees safety power.
Features

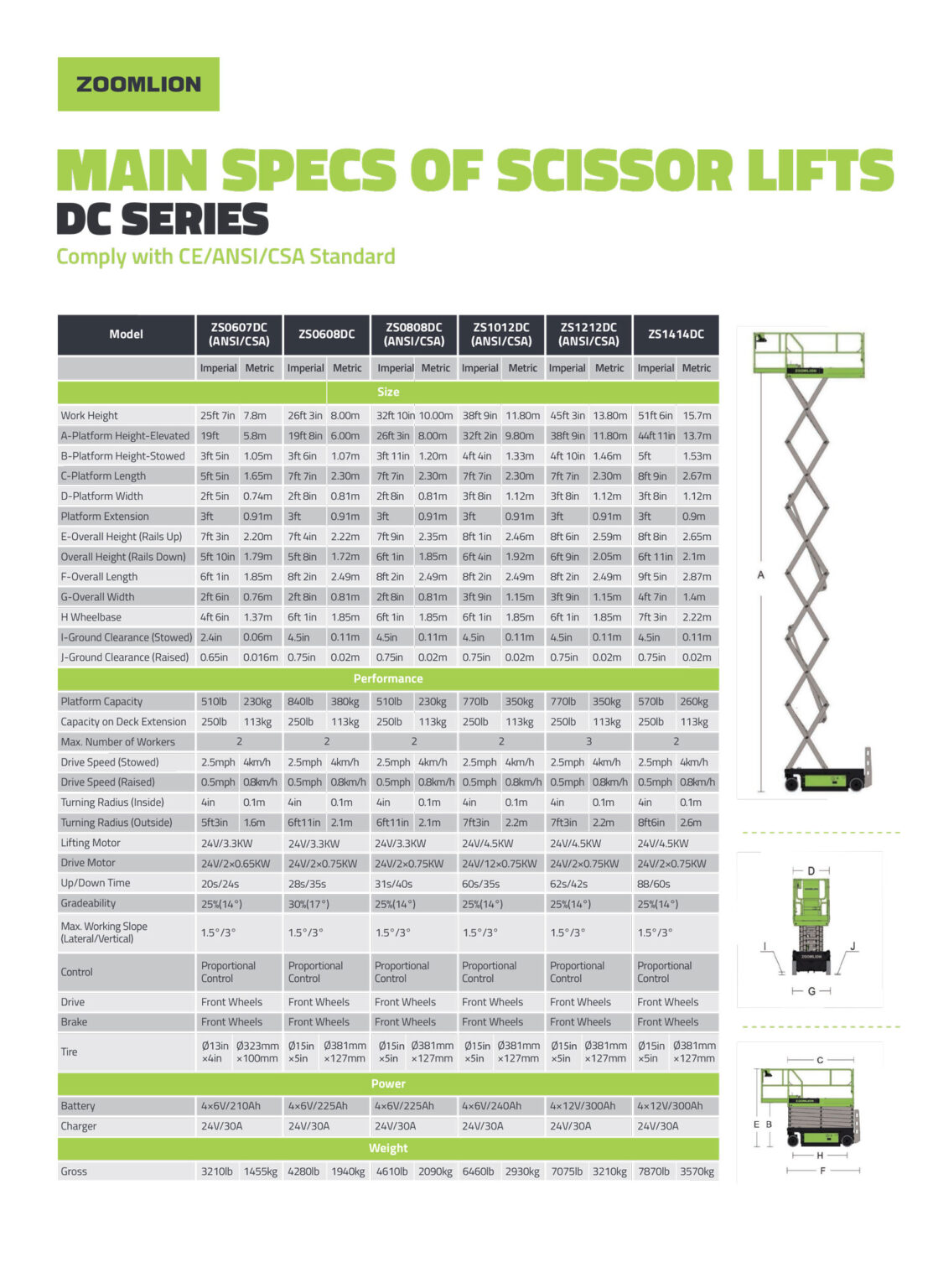

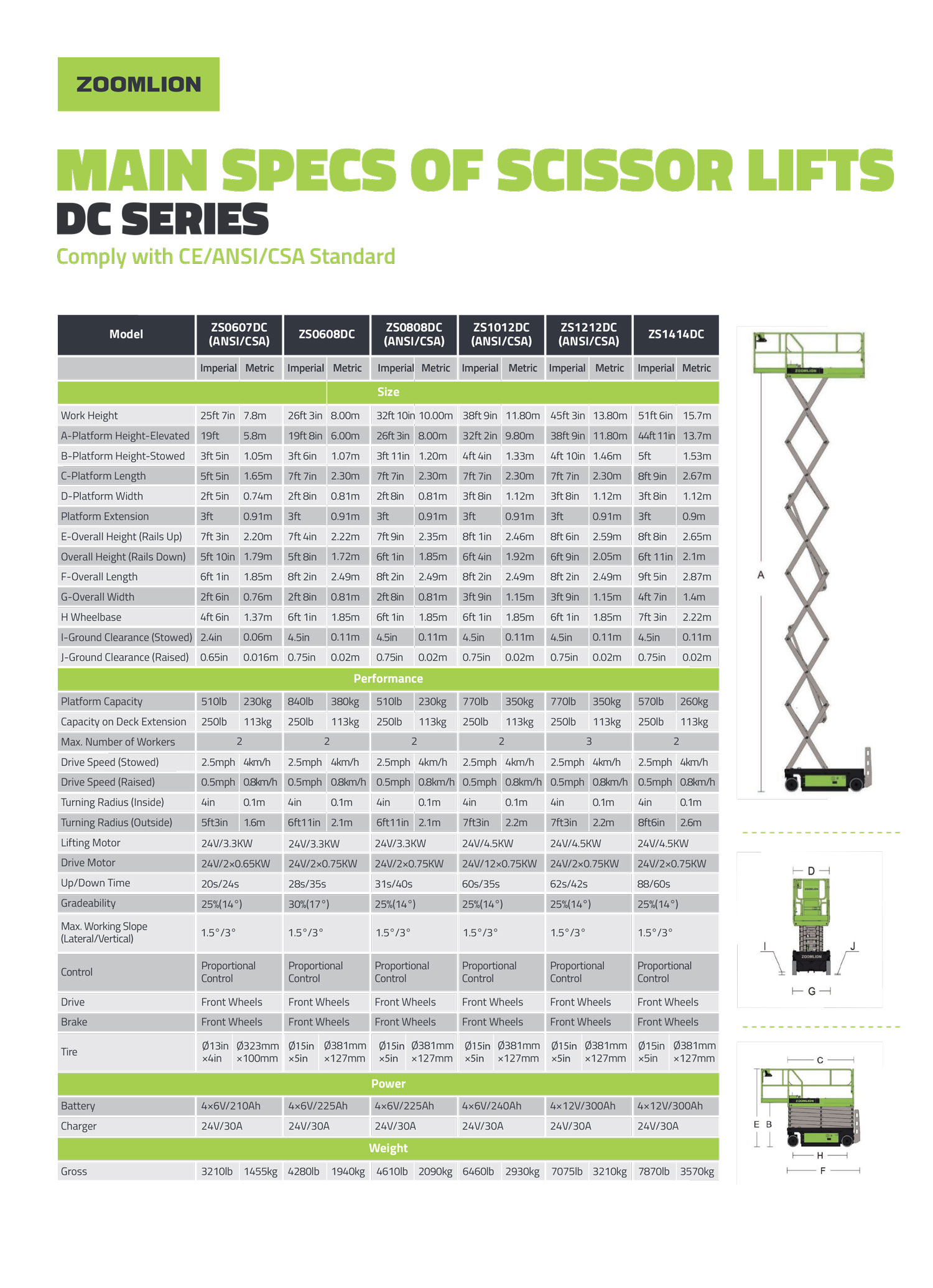

Scissor Lifts (DC Series)
Electric-driven scissor lifts deliver more than double efficiency of hydraulic-driven machines, with the existing platform heights ranging from 4m to 14m. Electric scissor lifts have longer runtimes and promote quieter working environments. Boasting low CG, stable operation and large capacity, this series deliver excellent performance for a more productive day.

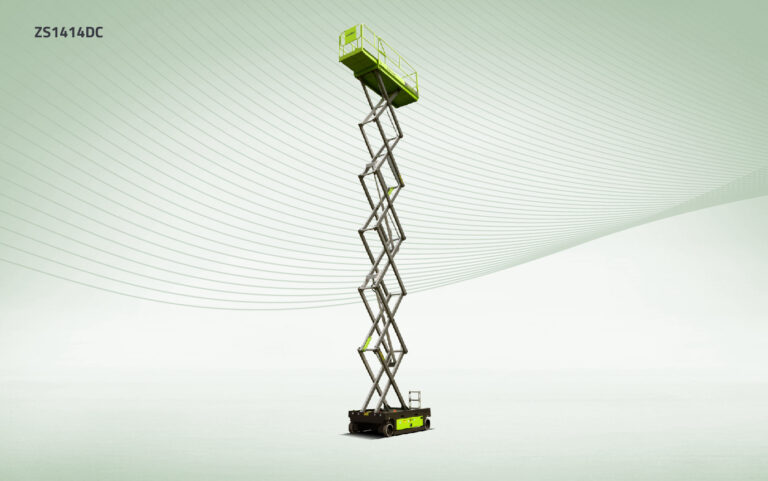

ZS1414DC
Work Height - 15.7m
Platform Height-Elevated - 13.7m
Platform Capacity - 260kg
Battery - 4×12V/300Ah | Charger - 24V/30A

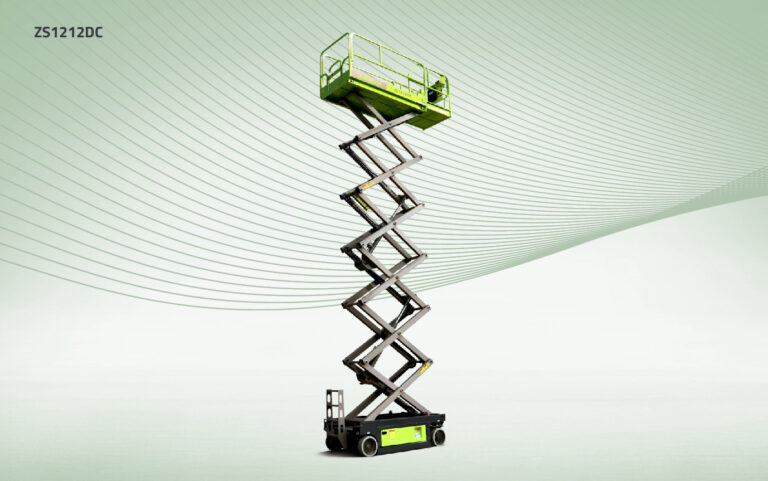

ZS1212DC
Work Height - 13.80m
Platform Height-Elevated - 11.80m
Platform Capacity - 350kg
Battery - 4×12V/300Ah | Charger - 24V/30A

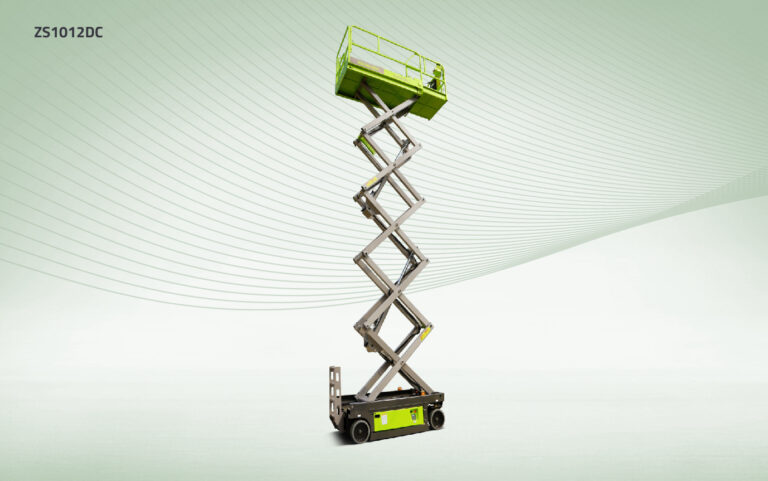

ZS1012DC
Work Height - 11.80m
Platform Height-Elevated - 9.80m
Platform Capacity - 350kg
Battery - 4×6V/240Ah | Charger - 24V/30A

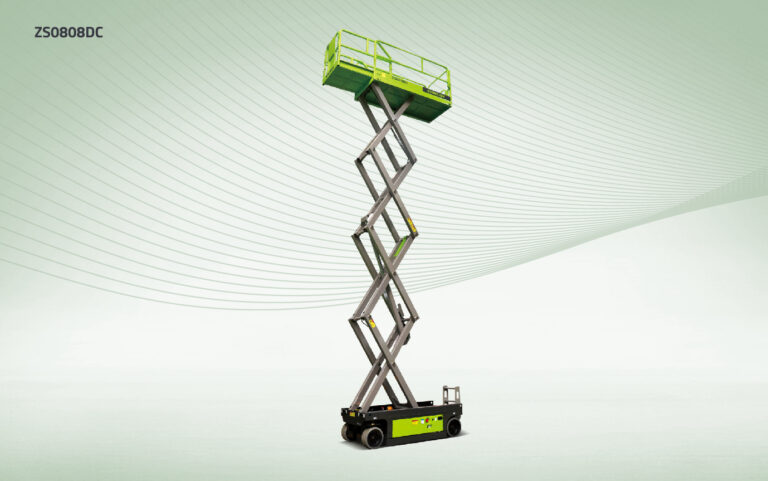

ZS0808DC
Work Height - 10.00m
Platform Height-Elevated - 8.00m
Platform Capacity - 230kg
Battery - 4×6V/225Ah | Charger - 24V/30A

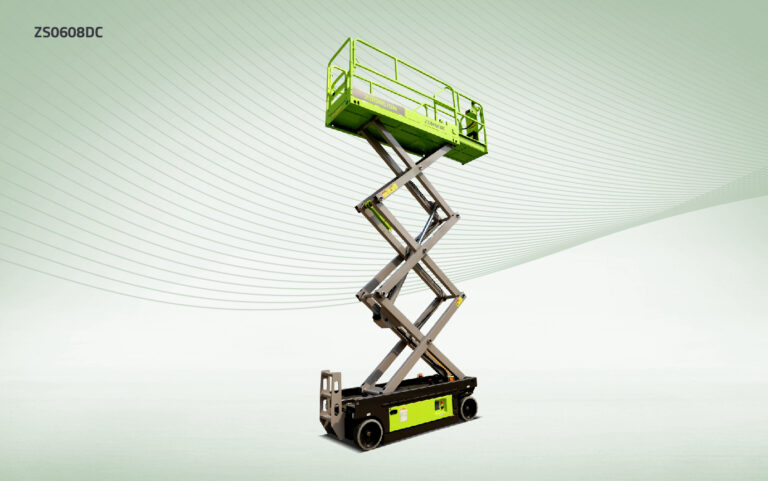

ZS0608DC
Work Height - 8.00m
Platform Height-Elevated - 6.00m
Platform Capacity - 380kg
Battery - 4×6V/225Ah | Charger - 24V/30A

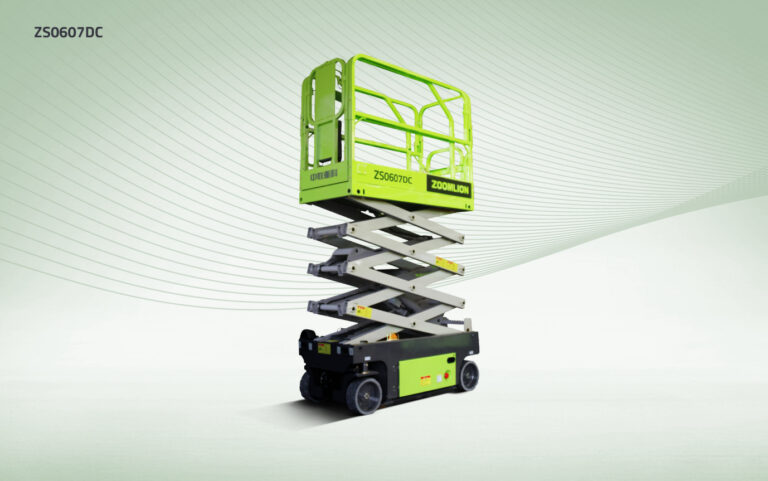

ZS0607DC
Work Height - 7.87m
Platform Height-Elevated - 5.87m
Platform Capacity - 230kg
Battery - 4×6V/210Ah | Charger - 24V/30A
Highlights
Features
Full Specification
Highlights
| High Performance | Easy Maintenance & Service | |||||
| The efficiency of direct electric-driven almost doubles hydraulic pump-driven | Common components and modular design, easy to maintenance | |||||
| Up to 380kg platform capacity with better performance on-the-job | Bilateral swing-out trays (battery & hydraulic), simple to service | |||||
| Front-wheel drive and brake offer mobility and versatility | Robust & build to last, reliable and safe | |||||
| Intelligent Connectivity | ||||||
| Zoomlion AWM Remote Monitoring and Rental Management System quickly obtains equipment status and realizes on-line operation management. * | ||||||
Features
| Standard Features | ||||||
| Proportional controls | Drivable at full height | |||||
| All motion alarm | Scissor maintenance prop | |||||
| Fold-down handrails | Charging protection system | |||||
| Flashing amber beacon | Extension deck (unidirectional) | |||||
| Self-closing entry gate | Autobrake system | |||||
| Emergency descent system | On-board diagnostic | |||||
| Active pothole protection system | Emergency stop button | |||||
| Hour meter | Over tilt protective system | |||||
| Forklift pockets | Zoomlion AWM Remote Monitoring and Rental Management System * | |||||
| GPS positioning and tracking system * | ||||||
| Accessories & Options | ||||||
| Airline to platform | AC power to platform | |||||
| Load sensing system | Platform work lights | |||||
| Maintenance-free battery | ||||||
| Horn | ||||||
Full Specification
| Main Specs of Scissor Lifts (DC Series) | ||||||
| Comply with CE/ANSI/GB Standard | ||||||
| Model | ZS1414DC | ZS1212DC | ZS1012DC | ZS0808DC | ZS0608DC | ZS0607DC |
| Size | ||||||
| Work Height | 15.7m | 13.80m | 11.80m | 10.00m | 8.00m | 7.87m |
| A – Platform Height | 13.7m | 11.80m | 9.80m | 8.00m | 6.00m | 5.87m |
| B – Platform Height (Stowed) | 1.53m | 1.46m | 1.33m | 1.20m | 1.07m | 1.05m |
| C – Platform Dimension (Length) | 2.67m | 2.30m | 2.30m | 2.30m | 2.30m | 1.65m |
| D – Platform Dimension (Width) | 1.12m | 1.12m | 1.12m | 0.81m | 0.81m | 0.74m |
| Platform Extension | 0.9m | 0.91m | 0.91m | 0.91m | 0.91m | 0.91m |
| E – Overall Height (Rails Up) | 2.65m | 2.59m | 2.46m | 2.35m | 2.22m | 2.20m |
| Overall Height (Rails Down) | 2.1m | 2.05m | 1.92m | 1.85m | 1.72m | 1.79m |
| F – Overall Length | 2.87m | 2.49m | 2.49m | 2.49m | 2.49m | 1.85m |
| G – Overall Width | 1.4m | 1.15m | 1.15m | 0.81m | 0.81m | 0.76m |
| H Wheelbase | 2.22m | 1.85m | 1.85m | 1.85m | 1.85m | 1.37m |
| I – Ground Clearance (Stowed) | 0.11m | 0.11m | 0.11m | 0.11m | 0.11m | 0.06m |
| J – Ground Clearance (Raised) | 0.02m | 0.02m | 0.02m | 0.02m | 0.02m | 0.016m |
| Performance | ||||||
| Platform Capacity | 260kg | 350kg | 350kg | 230kg | 380kg | 230kg |
| Capacity on Deck Extension | 113kg | 113kg | 113kg | 113kg | 113kg | 113kg |
| Max. Number of Workers | 2 | 3 | 2 | 2 | 2 | 2 |
| Drive Speed (Stowed) | 4km/h | 4km/h | 4km/h | 4km/h | 4km/h | 4km/h |
| Drive Speed (Raised) | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h |
| Turning Radius (Inside) | 0.1m | 0.1m | 0.1m | 0.1m | 0.1m | 0.1m |
| Turning Radius (Outside) | 2.6m | 2.2m | 2.2m | 2.1m | 2.1m | 1.6m |
| Up/Down Time | 88/60s | 62s/42s | 60s/35s | 31s/40s | 28s/35s | 20s/24s |
| Gradeability | 25% | 25%(14°) | 25%(14°) | 25%(14°) | 30%(17°) | 25%(14°) |
| Max. Working Slope (Lateral/Vertical) | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° |
| Control | Proportional Control | Proportional Control | Proportional Control | Proportional Control | Proportional Control | Proportional Control |
| Drive | Front Wheels | Front Wheels | Front Wheels | Front Wheels | Front Wheels | Front Wheels |
| Brake | Front Wheels | Front Wheels | Front Wheels | Front Wheels | Front Wheels | Front Wheels |
| Tire | ∅381mmX127mm | ф381mm×127mm | ф381mm×127mm | ф381mm×127mm | ф381mm×127mm | ф323mm×100mm |
| Power | ||||||
| Battery | 4×12V/300Ah | 4×12V/300Ah | 4×6V/240Ah | 4×6V/225Ah | 4×6V/225Ah | 4×6V/210Ah |
| Charger | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A |
| Weight | ||||||
| Gross | 3570kg | 3210kg | 2930kg | 2090kg | 1940kg | 1455kg |
Highlights
Features
Highlights
Zoomlion AWM Remote Monitoring and Rental Management System quickly obtains equipment status and realizes on-line operation management. *
Features
Standard Features
Proportional controls
Drivable at full height
All motion alarm
Scissor maintenance prop
Fold-down handrails
Charging protection system
Flashing amber beacon
Extension deck (unidirectional)
Self-closing entry gate
Autobrake system
Emergency descent system
On-board diagnostic
Active pothole protection system
Emergency stop button
Hour meter
Over tilt protective system
Forklift pockets
Zoomlion AWM Remote Monitoring and Rental Management System *
GPS positioning and tracking system *
Accessories & Options Airline to platform
AC power to platform
Load sensing system
Platform work lights
Maintenance-free battery
Horn
Accessories & Options
Scissor Lifts (DC-Li Series)
DC-Li series scissor lifts offer an excellent combination of working heights and lifting capacity capabilities with powerful electric drive motors and Lithium power. Our Li-ion batteries have a 5-year warranty with triple longer life than the traditional lead acid ones. With Smart Battery Management System (BMS) and the preheating function built-in for cold weather regions as low as -20°C, this series boost productivity and operator confidence with safety power.

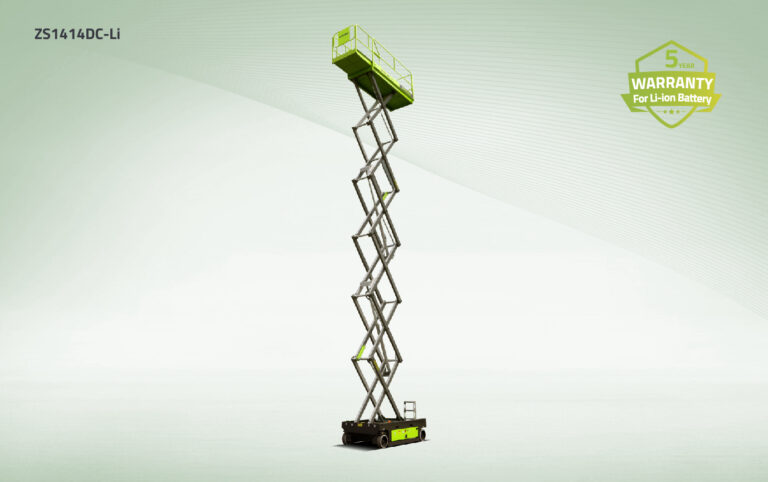

ZS1414DC-Li
Work Height - 15.7m
Platform Height-Elevated - 13.7m
Platform Capacity - 260kg
Battery - 250Ah Li-ion | Charger - 24V/30A | Charger (Option) - 24V/60A

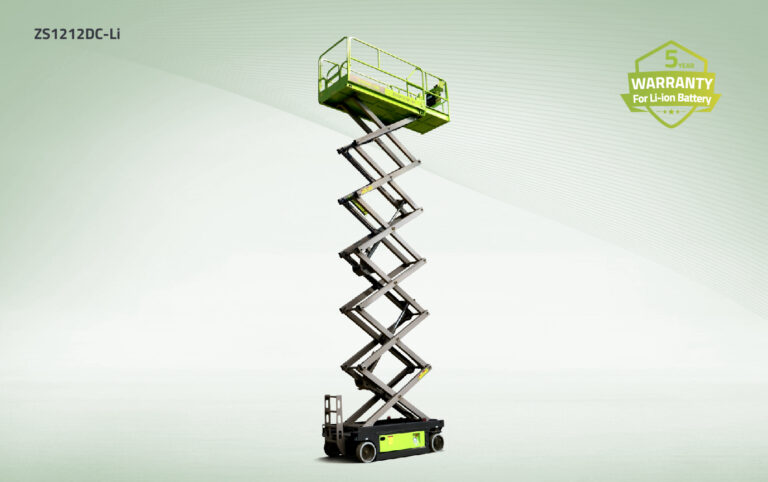

ZS1212DC-Li
Work Height - 13.80m
Platform Height-Elevated - 11.80m
Platform Capacity - 350kg
Battery - 200Ah Li-ion | Charger - 24V/30A | Charger (Option) - 24V/60A

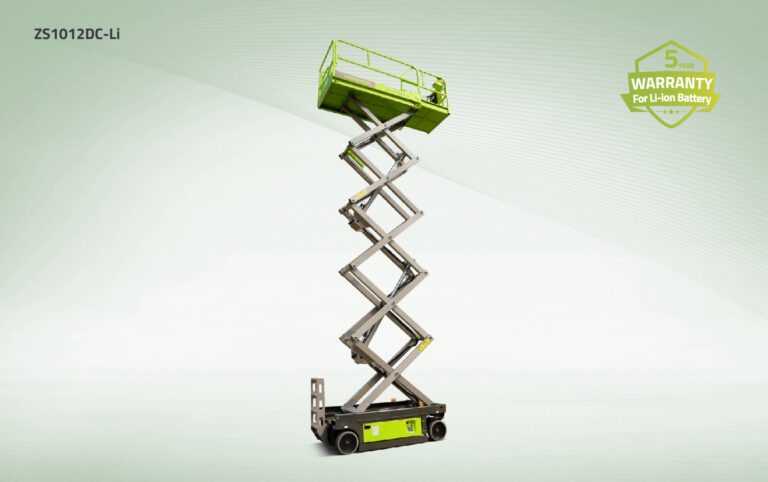

ZS1012DC-Li
Work Height - 11.80m
Platform Height-Elevated - 9.80m
Platform Capacity - 350kg
Battery - 200Ah Li-ion | Charger - 24V/30A | Charger (Option) - 24V/60A
ZS0808DC-Li
Work Height - 10.00m
Platform Height-Elevated - 8.00m
Platform Capacity - 230kg
Battery - 180Ah Li-ion | Charger - 24V/30A | Charger (Option) - 24V/60A

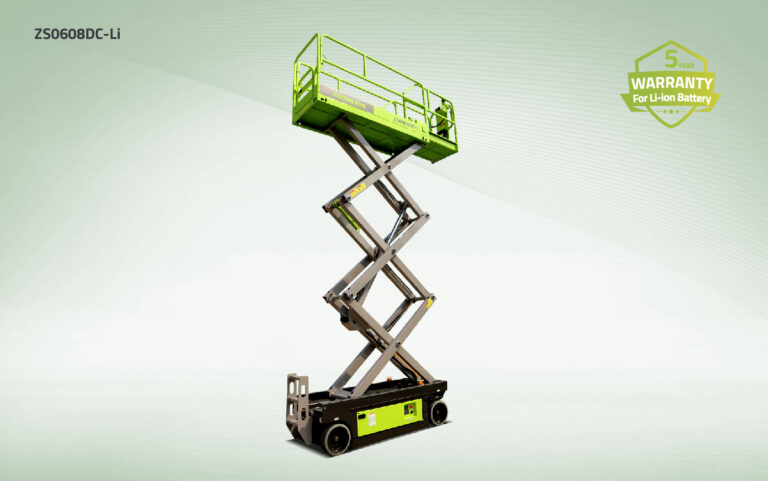

ZS0608DC-Li
Work Height - 8.00m
Platform Height-Elevated - 6.00m
Platform Capacity - 380kg
Battery - 180Ah Li-ion | Charger - 24V/30A | Charger (Option) - 24V/60A

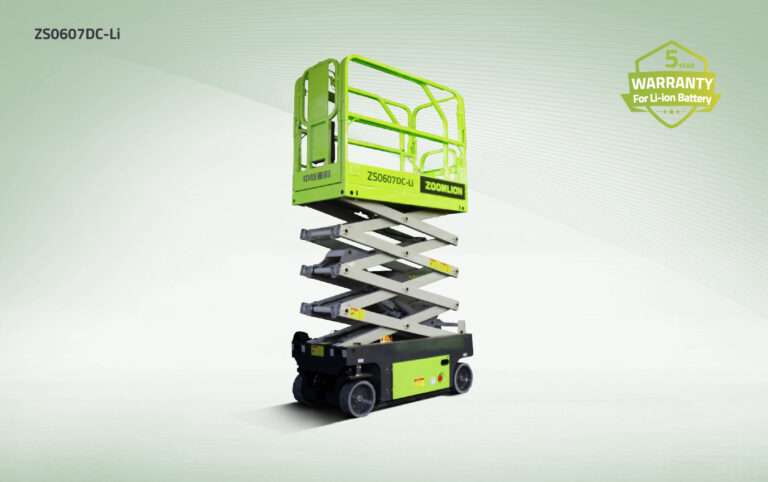

ZS0607DC-Li
Work Height - 7.87m
Platform Height-Elevated - 5.87m
Platform Capacity - 230kg
Battery - 140Ah Li-ion | Charger - 24V/30A | Charger (Option) - 24V/60A
Highlights
Features
Full Specification
Highlights
- Cutting-Edge Driving System with Lithium Power
5-year warranty for Li-ion battery
Maintenance-free and durable Li-ion battery with triple longer lifetime than traditional
Quick-charge technology save time
Preheating function built-in for cold weather regions
Smart Battery Management System (BMS) guarantees safety power.
Intelligent Connectivity
Zoomlion AWM Remote Monitoring and Rental Management System quickly obtains equipment status and realizes on-line operation management. *
Features
| Standard Features | ||||||
| GPS positioning and tracking system | Autobrake system | Drivable at full height | ||||
| Proportional controls | Emergency descent system | Hour meter | ||||
| All motion alarm | Emergency stop button | Extension deck (unidirectional) | ||||
| Fold-down handrails | On-board diagnostic | Charging protection system | ||||
| Flashing amber beacon | Over tilt protective system | Scissor maintenance prop | ||||
| Self-closing entry gate | Active pothole protection system | Forklift pockets | ||||
| Zoomlion AWM Remote Monitoring and Rental Management System * | ||||||
| Accessories & Options | ||||||
| Platform work lights | Load sensing system | |||||
| AC power to platform | Airline to platform | |||||
| Horn | ||||||
Full Specification

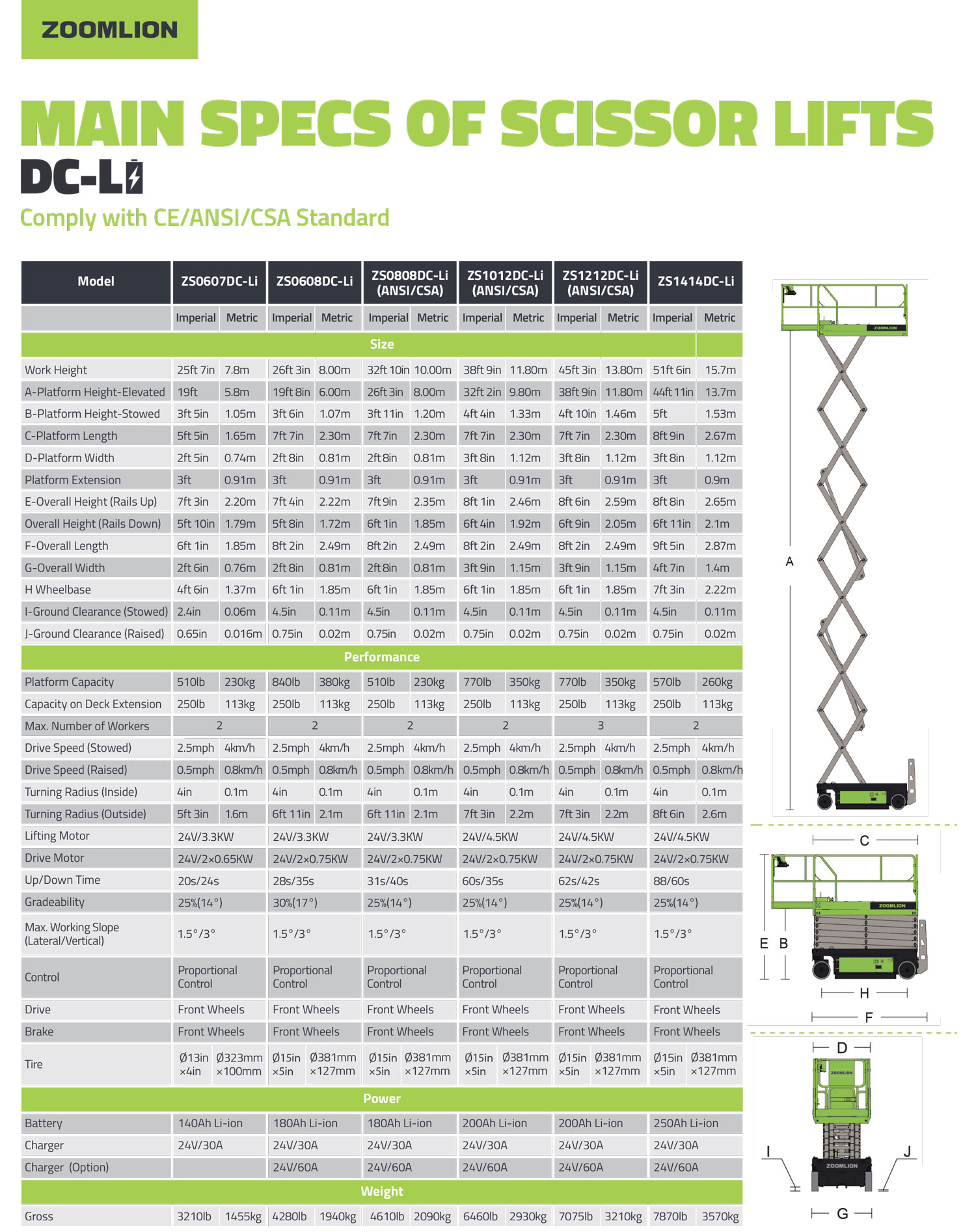

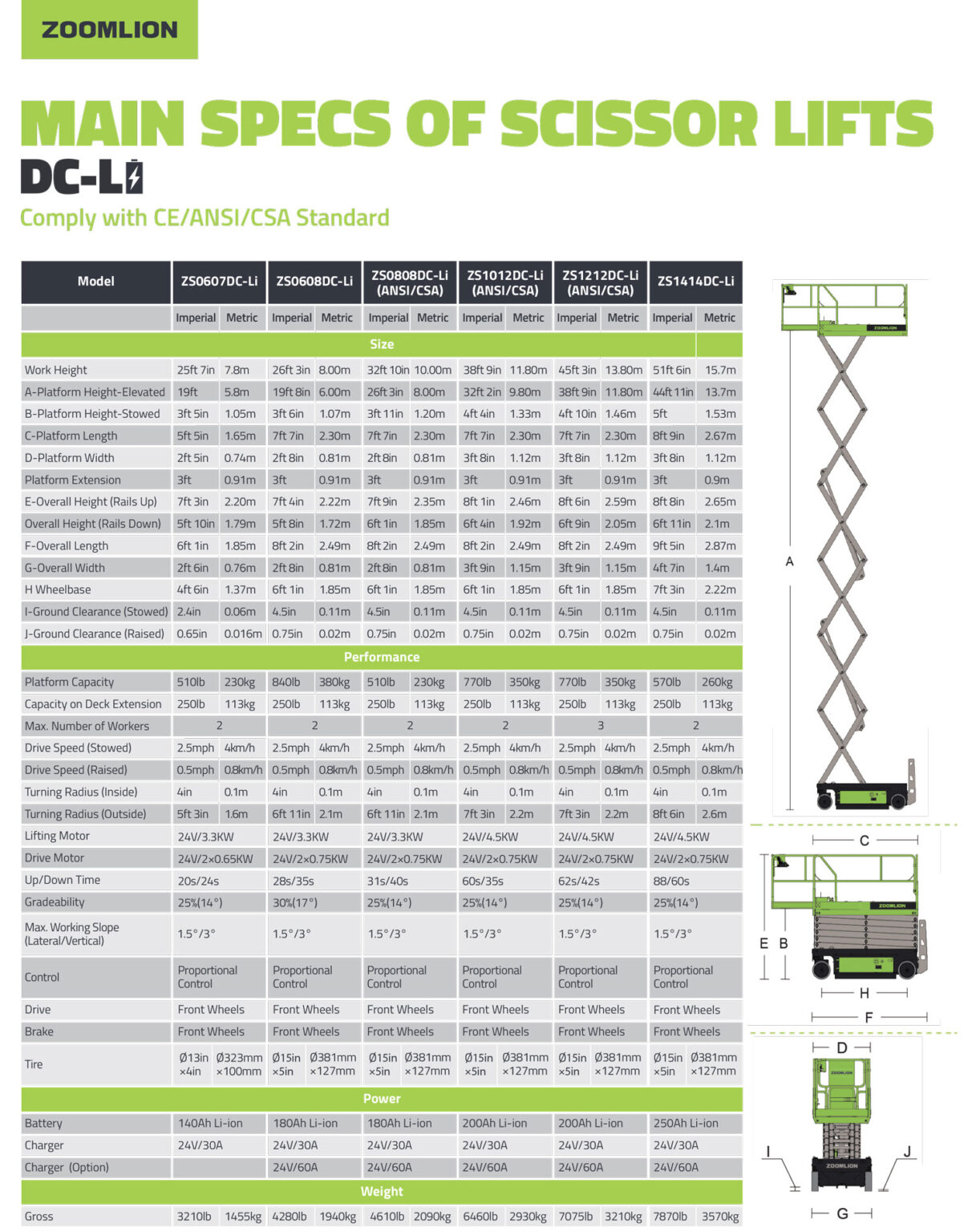

| Main Specs of Scissor Lifts (DC-Li) | ||||||
| Comply with CE/ANSI/GB Standard | ||||||
| Model | ZS1414DC-Li | ZS1212DC-Li | ZS1012DC-Li | ZS0808DC-Li | ZS0608DC-Li | ZS0607DC-Li |
| Size | ||||||
| Work Height | 15.7m | 13.80m | 11.80m | 10.00m | 8.00m | 7.87m |
| A – Platform Height-Elevated | 13.7m | 11.80m | 9.80m | 8.00m | 6.00m | 5.87m |
| B – Platform Height-Stowed | 1.53m | 1.46m | 1.33m | 1.20m | 1.07m | 1.05m |
| C – Platform Length | 2.67m | 2.30m | 2.30m | 2.30m | 2.30m | 1.65m |
| D – Platform Width | 1.12m | 1.12m | 1.12m | 0.81m | 0.81m | 0.74m |
| Platform Extension | 0.9m | 0.91m | 0.91m | 0.91m | 0.91m | 0.91m |
| E – Overall Height (Rails Up) | 2.65m | 2.59m | 2.46m | 2.35m | 2.22m | 2.20m |
| Overall Height (Rails Down) | 2.1m | 2.05m | 1.92m | 1.85m | 1.72m | 1.79m |
| F – Overall Length | 2.87m | 2.49m | 2.49m | 2.49m | 2.49m | 1.85m |
| G – Overall Width | 1.4m | 1.15m | 1.15m | 0.81m | 0.81m | 0.76m |
| H – Wheelbase | 2.22m | 1.85m | 1.85m | 1.85m | 1.85m | 1.37m |
| I – Ground Clearance (Stowed) | 0.11m | 0.11m | 0.11m | 0.11m | 0.11m | 0.06m |
| J – Ground Clearance (Raised) | 0.02m | 0.02m | 0.02m | 0.02m | 0.02m | 0.016m |
| Performance | ||||||
| Platform Capacity | 260kg | 350kg | 350kg | 230kg | 380kg | 230kg |
| Capacity on Deck Extension | 113kg | 113kg | 113kg | 113kg | 113kg | 113kg |
| Max. Number of Workers | 2 | 3 | 2 | 2 | 2 | 2 |
| Drive Speed (Stowed) | 4km/h | 4km/h | 4km/h | 4km/h | 4km/h | 4km/h |
| Drive Speed (Raised) | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h |
| Turning Radius (Inside) | 0.1m | 0.1m | 0.1m | 0.1m | 0.1m | 0.1m |
| Turning Radius (Outside) | 2.6m | 2.2m | 2.2m | 2.1m | 2.1m | 1.6m |
| Up/Down Time | 88/60s | 62s/42s | 60s/35s | 31s/40s | 28s/35s | 20s/24s |
| Gradeability | 25% | 25%(14°) | 25%(14°) | 25%(14°) | 30%(17°) | 25%(14°) |
| Max. Working Slope (Lateral/Vertical) | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° |
| Control | Proportional Control | Proportional Control | Proportional Control | Proportional Control | Proportional Control | Proportional Control |
| Drive | Front Wheels | Front Wheels | Front Wheels | Front Wheels | Front Wheels | Front Wheels |
| Brake | Front Wheels | Front Wheels | Front Wheels | Front Wheels | Front Wheels | Front Wheels |
| Tire | ∅381mmX127mm | ф381mm×127mm | ф381mm×127mm | ф381mm×127mm | ф381mm×127mm | ф323mm×100mm |
| Power | ||||||
| Battery | 250Ah Li-ion | 200Ah Li-ion | 200Ah Li-ion | 180Ah Li-ion | 180Ah Li-ion | 140Ah Li-ion |
| Charger | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A |
| Charger (option) | 24V/60A | 24V/60A | 24V/60A | 24V/60A | 24V/60A | |
| Weight | ||||||
| Gross | 3570kg | 3210kg | 2930kg | 2090kg | 1940kg | 1455kg |
Highlights
Features
Highlights
Zoomlion AWM Remote Monitoring and Rental Management System quickly obtains equipment status and realizes on-line operation management. *
Features
Standard Features
GPS positioning and tracking system
Autobrake system
Drivable at full height
Proportional controls
Emergency descent system
Hour meter
All motion alarm
Emergency stop button
Extension deck (unidirectional)
Fold-down handrails
On-board diagnostic
Charging protection system
Flashing amber beacon
Over tilt protective system
Scissor maintenance prop
Self-closing entry gate
Active pothole protection system
Forklift pockets
Zoomlion AWM Remote Monitoring and Rental Management System *
Accessories & Options
Platform work lights
Load sensing system
AC power to platform
Airline to platform
Horn
Zoomlion AWM Remote Monitoring and Rental Management System *
Accessories & Options
Micro Scissor Lifts
ZS0407 Series
The Zoomlion ZS0407 scissor lift is equipped with an efficient and electric DC drive system that offers productive power for indoor low level and tight access applications with quiet, zero-emissions operation. It can be equipped with lithium-ion battery for option. This series offer low-level access to areas that may have traditionally been accessed by ladders. Compact dimensions are ideal for indoor jobsites with a smooth runtime.

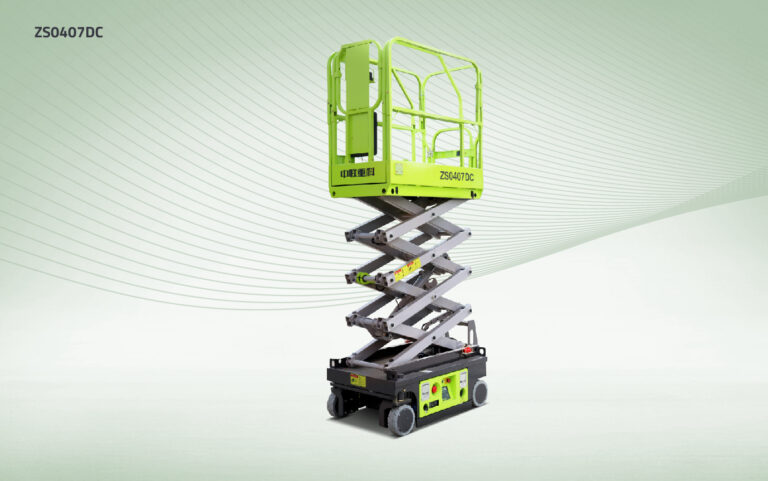

ZS0407DC
Work Height - 6.5m
Platform Height-Elevated - 4.5m
Platform Capacity - 240kg
Battery - 2×12V/85Ah | Charger - 24V/15A

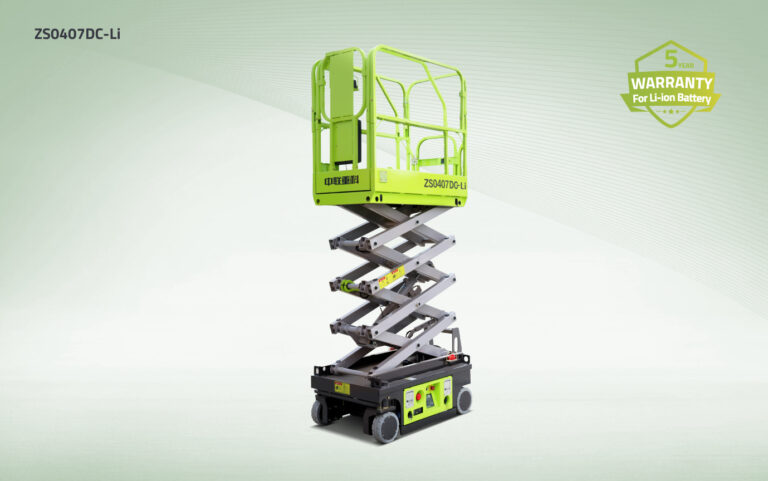

ZS0407DC-Li
Work Height - 6.5m
Platform Height-Elevated - 4.5m
Platform Capacity - 240kg
Battery - 102Ah Li-ion Battery | Charger - 24V/15A
Highlights
Features
Full Specification
Highlights
High Performance
The efficiency of direct electric-driven almost doubles hydraulic pump-driven
Compact dimensions ideal for low level and tight access applications
Light weight only 895 kg
Climbing up 25 percent grade slopes in a stowed position
A maximum work height of 6.5m
Cost Effectiveness
Modularized and unitized parts design ideal for maintenance
Swing-out tray easy to service
Intelligent Connectivity
Zoomlion AWM Remote Monitoring and Rental Management System quickly obtains equipment status and realizes on-line operation management.
Features
| Standard Features | ||
| GPS positioning and tracking system | Autobrake system | Drivable at full height |
| Proportional controls | Emergency descent system | Hour meter |
| All motion alarm | Emergency stop button | Extension deck (unidirectional) |
| Fold-down handrails | On-board diagnostic | Charging protection system |
| Flashing amber beacon | Over tilt protective system | Scissor maintenance prop |
| Self-closing entry gate | Active pothole protection system | Forklift pockets |
| Zoomlion AWM Remote Monitoring and Rental Management System * | ||
| Accessories & Options | ||
| Platform work lights | Load sensing system | |
| AC power to platform | Airline to platform | |
| Horn | ||
Full Specification

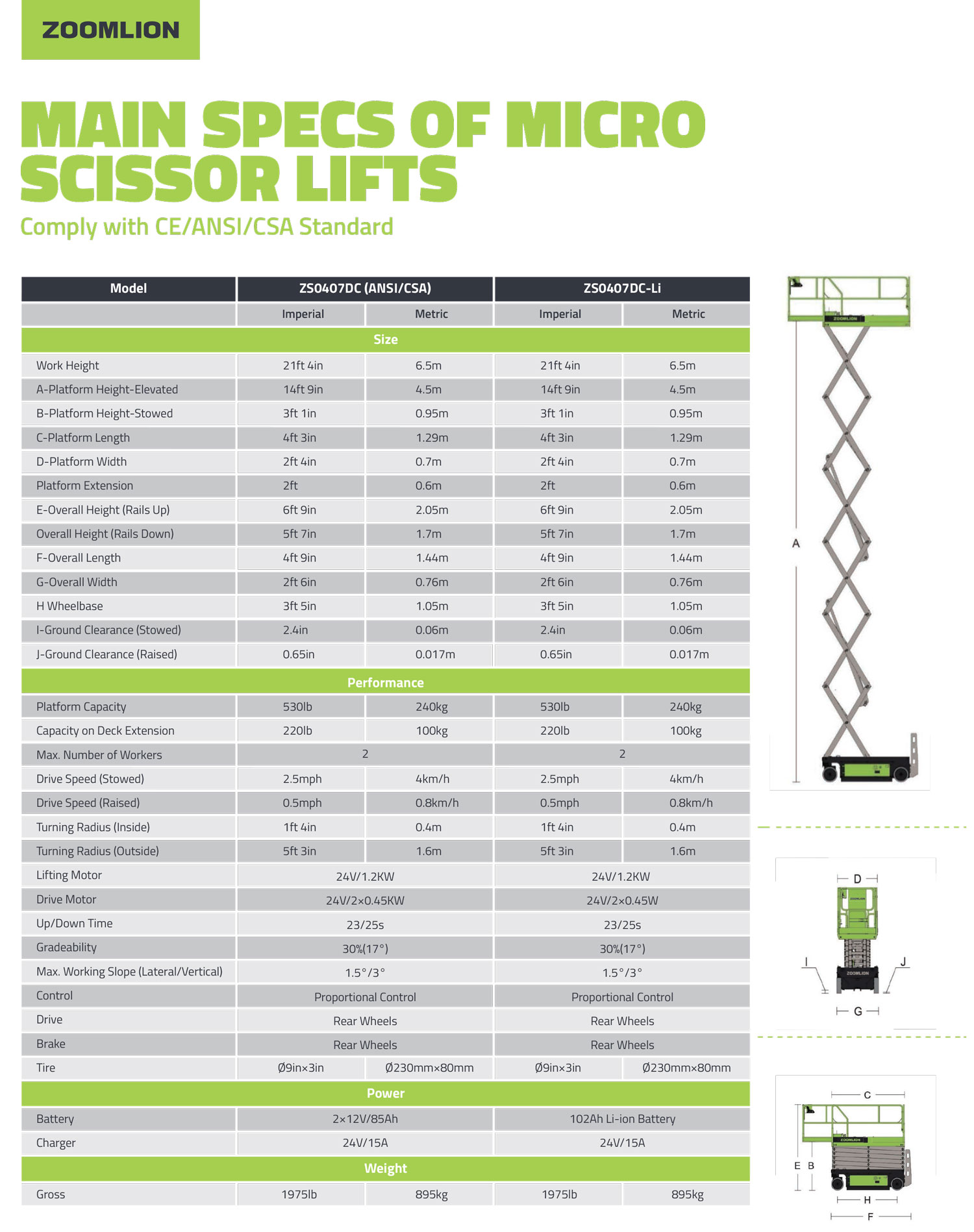

| Main Specs of Micro Scissor Lifts | ||
| Comply with CE/ANSI/GB Standard | ||
| Model | ZS0407DC | ZS0407DC-Li |
| Size | ||
| Work Height | 6.5m | 6.5m |
| A – Platform Height-Elevated | 4.5m | 4.5m |
| B – Platform Height-Stowed | 0.95m | 0.95m |
| C – Platform Length | 1.29m | 1.29m |
| D – Platform Width | 0.7m | 0.7m |
| Platform Extension | 0.6m | 0.6m |
| E – Overall Height (Rails Up) | 2.05m | 2.05m |
| Overall Height (Rails Down) | 1.7m | 1.7m |
| F – Overall Length | 1.44m | 1.44m |
| G – Overall Width | 0.76m | 0.76m |
| H – Wheelbase | 1.05m | 1.05m |
| I – Ground Clearance (Stowed) | 0.06m | 0.06m |
| J – Ground Clearance (Raised) | 0.017m | 0.017m |
| Performance | ||
| Platform Capacity | 240kg | 240kg |
| Capacity on Deck Extension | 100kg | 100kg |
| Max. Number of Workers | 2 | 2 |
| Drive Speed (Stowed) | 4km/h | 4km/h |
| Drive Speed (Raised) | 0.8km/h | 0.8km/h |
| Turning Radius (Inside) | 0.4m | 0.4m |
| Turning Radius (Outside) | 1.6m | 1.6m |
| Lifting Motor | 24V/1.2KW | 24V/1.2KW |
| Up/Down Time | 23/25s | 23/25s |
| Gradeability | 25% | 25% |
| Max. Working Slope (Lateral/Vertical) | 1.5°/3° | 1.5°/3° |
| Control | Proportional Control | Proportional Control |
| Drive | Rear Wheels | Rear Wheels |
| Brake | Rear Wheels | Rear Wheels |
| Tire | ∅230mmX80mm | ∅230mmX80mm |
| Power | ||
| Battery | 2×12V/85Ah | 102Ah Li-ion Battery |
| Charger | 24V/15A | 24V/15A |
| Weight | ||
| Gross | 895kg | 895kg |
Highlights
Features
Highlights
Zoomlion AWM Remote Monitoring and Rental Management System quickly obtains equipment status and realizes on-line operation management.
Features
Standard Features
GPS positioning and tracking system
Autobrake system
Drivable at full height
Proportional controls
Emergency descent system
Hour meter
All motion alarm
Emergency stop button
Extension deck (unidirectional)
Fold-down handrails
On-board diagnostic
Charging protection system
Flashing amber beacon
Over tilt protective system
Scissor maintenance prop
Self-closing entry gate
Active pothole protection system
Forklift pockets
Zoomlion AWM Remote Monitoring and Rental Management System *
Accessories & Options
Platform work lights
Load sensing system
AC power to platform
Airline to platform
Horn
Zoomlion AWM Remote Monitoring and Rental Management System *
Accessories & Options
Rough Scissor Lifts

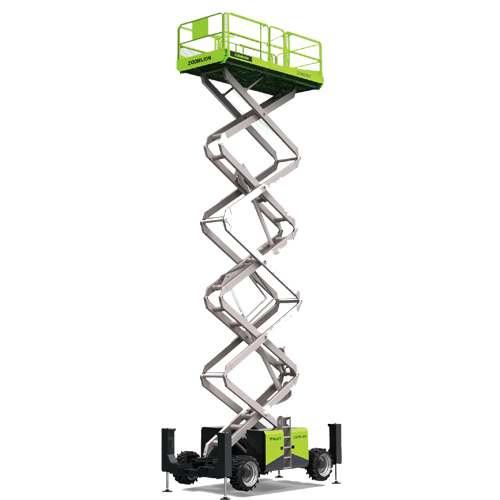

ZS1623RT
ZS1623RT adopts modern design such as modularization, light weight, commonalization and intelligence and provides large lift capacity and high reliability. Four-wheel drive and oscillating axle system greatly improves off-road performance. With a gradeability of 40%, it can adapt to all kinds of extreme access jobs. Lubrication-free boom system minimizes equipment holding costs. Swing-out engine tray makes regular maintenance more convenient. POST (power on self test), and maintenance alert for efficient fleet management.

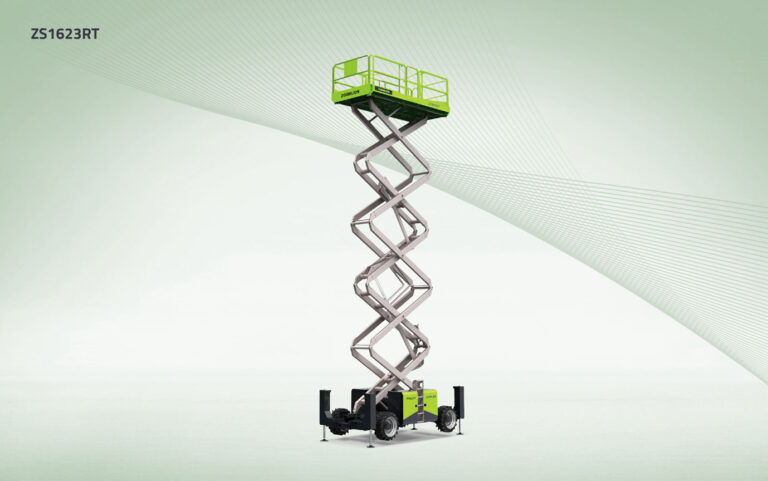

ZS1623RT
Work Height - 18m
Platform Height-Elevated - 16m
Platform Capacity - 680kg
Engine Power - 36kw/2600rpm
Highlights
Features
Full Specification
Highlights
| Reliable auto-leveling function | ||
| Bilateral swing-out trays, simple to service and effective to control noise | ||
| Smart telematic control interface with self-diagnostic monitoring capability | ||
Features
| Standard Features | ||
| Proportional controls | Autobrake system | Horn |
| All motion alarm | Emergency descent system | Hour meter |
| Fold-down handrails | Emergency stop button | Extension deck (bidirectional) |
| Flashing amber beacon | On-board diagnostic | Scissor maintenance prop |
| Self-closing entry gate | Over tilt protective system | |
| Accessories & Options | ||
| Platform work lights | ||
| Load sensing system | ||
| AC power to platform | ||
| Airline to platform | ||

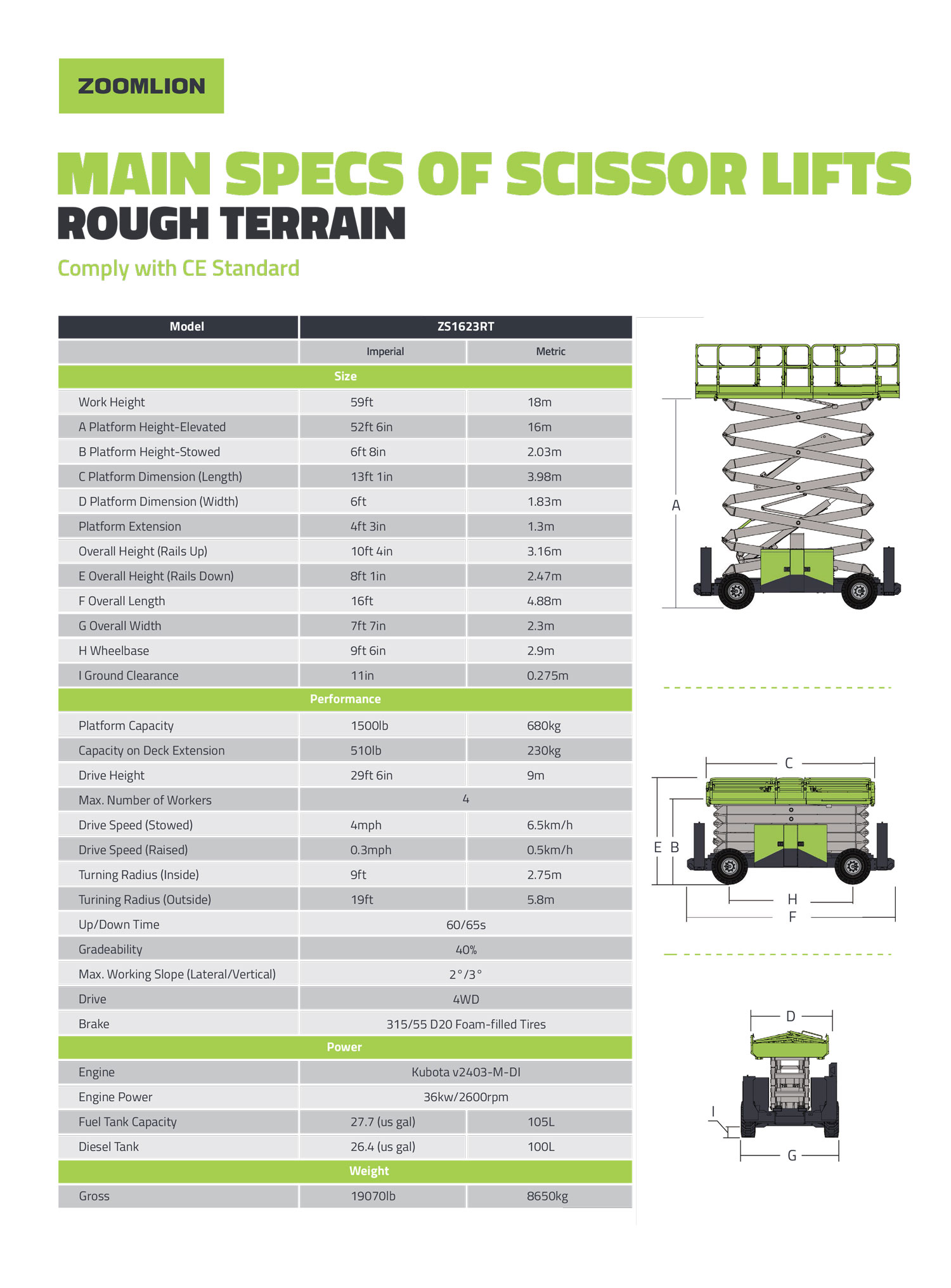

Full Specification
| Model | ZS1623RT | |
| Metric | Imperial | |
| Size | ||
| Work Height | 18m | 59ft |
| A Platform Height-Elevated | 16m | 52ft 6in |
| B Platform Height-Stowed | 2.03m | 6ft 8in |
| C Platform Dimension (Length) | 3.98m | 13ft 1in |
| D Platform Dimension (Width) | 1.83m | 6ft |
| Platform Extension | 1.3m | 4ft 3in |
| Overall Height (Rails Up) | 3.16m | 10ft 4in |
| E Overall Height (Rails Down) | 2.47m | 8ft 1in |
| F Overall Length | 4.88m | 16ft |
| G Overall Width | 2.3m | 7ft 7in |
| H Wheelbase | 2.9m | 9ft 6in |
| I Ground Clearance | 0.275m | 11in |
| Performance | ||
| Platform Capacity | 680kg | 1500lb |
| Capacity on Deck Extension | 230kg | 510lb |
| Drive Height | 9m | 29ft 6in |
| Max. Number of Workers | 4 | |
| Drive Speed (Stowed) | 6.5km/h | 4mph |
| Drive Speed (Raised) | 0.5km/h | 0.3mph |
| Turning Radius (Inside) | 2.75m | 9ft |
| Turining Radius (Outside) | 5.8m | 19ft |
| Up/Down Time | 60/65s | 60/65s |
| Gradeability | 40% | |
| Max. Working Slope (Lateral/Vertical) | 2°/3° | |
| Drive | 4WD | |
| Brake | 315/55 D20 Foam-filled Tires | |
| Power | ||
| Engine | Kubota v2403-M-DI | |
| Engine Power | 36kw/2600rpm | |
| Fuel Tank Capacity | 105L | 27.7 (us gal) |
| Diesel Tank | 100L | 26.4 (us gal) |
| Weight | ||
| Gross | 8650kg | 19070lb |
Highlights
Features
Highlights
Features
Standard Features
Proportional controls
Autobrake system
Horn
All motion alarm
Emergency descent system
Hour meter
Fold-down handrails
Emergency stop button
Extension deck (bidirectional)
Flashing amber beacon
On-board diagnostic
Scissor maintenance prop
Self-closing entry gate
Over tilt protective system
Accessories & Options
Platform work lights
Load sensing system
AC power to platform
Airline to platform
Accessories & Options
About MN Engineering Solutions
Established 2014, M.N. Engineering Solutions (MNES) provide best In-Class Engineering Products and Solutions for the industry, built upon a foundation of knowledge, excellence and relations. Our team bring more than 20 years of collective experience delivering high quality products & solutions to a wide range of customers across India.
- +91 9711996512
- iqbal@mnes.in
- Sihi Sikanderpur Road, Near Stella Co., VPO: Kherki Daula, Gurgaon – 122 004
