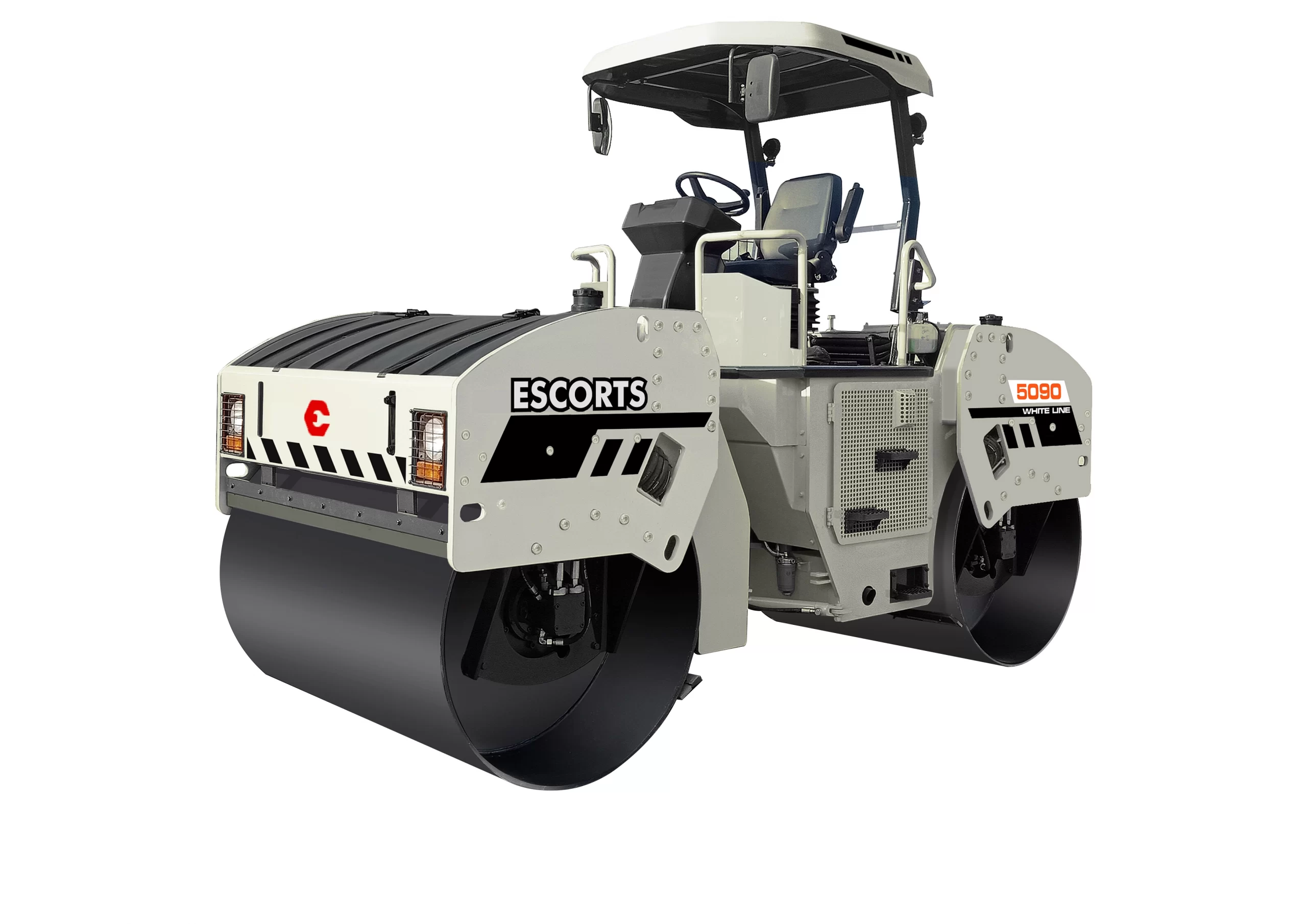

Tandem Rollers 5090

Engine

ENGINE	STD/DD
Model / Make	ESCORTS E4.346 CR
Specification	4 Cylinder, Water Cooled, CEV – IV Emission Norms
Rated Power	75HP @ 2000 RPM
Low Idle RPM	750 ± 5
Flyup RPM	2175 ± 5

Download Brochure

Key Feature

Sprinkler Nozzles visible from the operator seat
Water Pump, 2 nos. for uninterrupted operation
Foldable canopy frame to decrease height during transportation
High kerb clearance of 730 mm for effective compaction along with culverts
Swivel Operator seat including steering wheel, FNR lever, and instrument panel for drum edge visibility
High Static Liner Load
Low Turning Radius
Compact Design

FEATURES

ENGINE

75 HP CEV - IV compliant 4 Cylinder water cooled turbo charged ESCORTS E4.346 CR engine with inline pump Best-in-class fuel economy, High on performance Lowest maintenance cost in its class

LED WORK LIGHTS

LED work lights for smooth night operations Head Lamp & 3 Chamber rear light with wire mesh for protection

SPRINKLING SYSTEM

Sprinkling nozzles visible from operator seat Sprinkling nozzles with three-stage filtration to avoid clogging Tongue-type nozzles to avoid rusting Wide flat fan with a sharply delimited spray pattern for long last uses

INSTRUMENT PANEL

Dust and Weather proof, rocker for high reliability IP 67 Compliant Instrument cluster and Rocker switches

OPTIMUM VISIBILITY

360° visibility provides maximum safety Clear drum edge visibility from operator seat Compact Design for ease of operation in narrow space

OPERATOR PLATFORM

Ergonomically designed space for operator comfort Foldable 2 post Canopy legs for ease of transportation Rotating platform (Swivel) ± 38° with tiltable steering ± 10° Resilient rubber mounts, low vibration transfer to the operator

COMPACTION FORCE

Optimised setting Amplitude 1.0/0.4 mm with frequency 33/50 Hz Delay relay to avoid the sudden impact while switching from one frequency to another, High Kerb clearance for better road edge compaction

GRADEABILITY

High Gradeability makes it versatile for all applications
