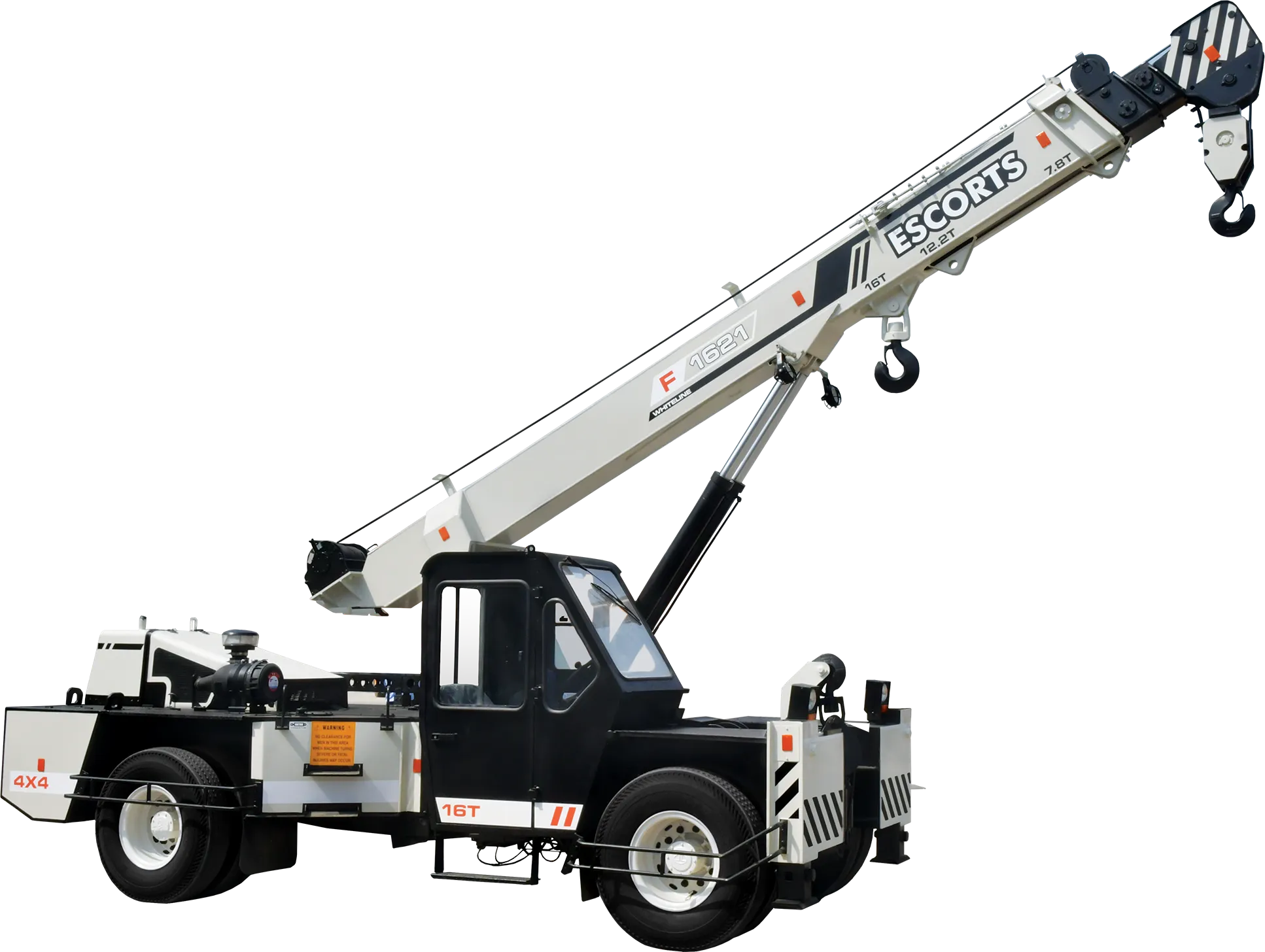

Crane F1621
Engine
Volvo – Eicher make CEV BS IV Diesel Engine, Model
E494TCI – High Pressure Common Rail System (HPCR) Technology,
Turbo Charged Water Cooled, ECU Control Engine
Management System, Developing 74 Kw/101HP
@ 2200 RPM or Equivalent Engine
E494TCI – High Pressure Common Rail System (HPCR) Technology,
Turbo Charged Water Cooled, ECU Control Engine
Management System, Developing 74 Kw/101HP
@ 2200 RPM or Equivalent Engine
SAFETY SYSTEM
- Safe Load Indicator with Hydraulic Cut off (Optional)
- Safety brakes on Hoist (Standard)
- Hose Protection failure Device (Standard)
- Rope Compensating Snatch Block (Standard)
- Equipment Monitoring System (Optional)
- Rear View Camera with LCD (Standard)
- Battery Cut off Switch
FEATURES
HYDRAULIC CLUTCH
Low effort hydro pneumatic clutch to reduce operator fatigue.
ELECTRONIC ACCELERATOR PEDAL
Accelerator Pedal - Low effort electronic accelerator pedal reduce operator fatigue
ECU EMS SYSTEM
ECU EMS – Electronic Control Unit for Engine Management System for Engine diagnosis and troubleshoot.
IGNITION ON/ OFF
Ignition key to switch off the engine, no more use of stop cable to engine put off.
HPCR SYSTEM
HPCR – High Pressure Common Rail System - HPCR provide cleaner exhaust, deliver more horsepower and fuel efficiency per displacement.
ROCKER SWITCHES
Rocker Switch with more reliable and better aesthetic appearance, low operator fatigue
CLUSTER
Single Digital Cluster with all gauges, fault code detection for engine system, date and time display feature, less number of wiring harness.
